High capacity - Self-centering, self-locking - Two thrust rings with single taper design - Tolerances: shaft h7-h11; hub bore H7-H11 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 μm
Unit of Measure

Technical Specs

Ma

 N/A 690 N·m

Torque - Mt

 N/A 237000 N·m

Hub Pressure - Ph

 N/A 171 MPa

Ps

 N/A 217 MPa

Fax

 N/A 1694.7 kN

Weight

 N/A 27 kg

Locking Screws

Size

 N/A M20

Dimensions

d

 N/A 280 mm

D

 N/A 355 mm

L

 N/A 130 mm

L1

 N/A 110 mm

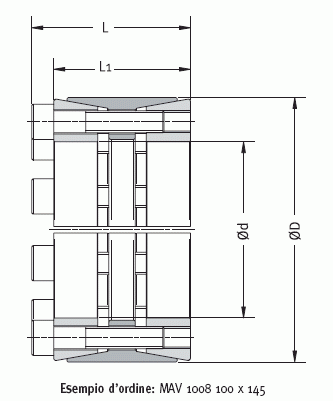

Dimensional Drawing


Locking assembly MAV 1008 - dim
