High capacity - Self-centering, self-locking - Two thrust rings with single taper design - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 μm
Unit of Measure

Technical Specs

Ma

 N/A 41 N·m

Torque - Mt

 N/A 6700 N·m

Hub Pressure - Ph

 N/A 131 MPa

Ps

 N/A 191 MPa

Fax

 N/A 206 kN

Weight

 N/A 1.5 kg

Locking Screws

Size

 N/A M8

Dimensions

d

 N/A 65 mm

D

 N/A 95 mm

L

 N/A 74 mm

L1

 N/A 66 mm

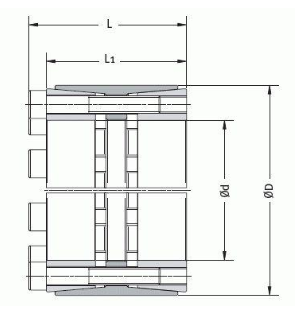

Dimensional Drawing


Locking assembly MAV 4061 - dim
