Medium capacity - Self-centering, self-locking - Fixed axial hub position during tightening - Single taper design - Low contact pressures - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
Unit of Measure

Technical Specs

Ma

 N/A 17 N·m

Torque - Mt

 N/A 440 N·m

Hub Pressure - Ph

 N/A 71 MPa

Ps

 N/A 142 MPa

Fax

 N/A 35 kN

Weight

 N/A 0.4 kg

Locking Screws

Size

 N/A M6

Dimensions

d

 N/A 25 mm

D

 N/A 50 mm

L

 N/A 49 mm

L1

 N/A 43 mm

L2

 N/A 31 mm

D1

 N/A 56 mm

Dimensional Drawing

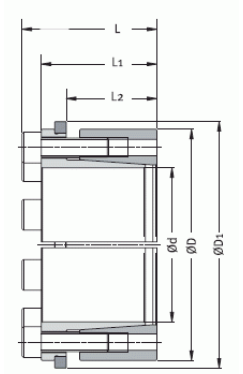

Locking assembly MAV 6902 - dim
