External locking device for hollow shaft (hub) - shaft connection – High capacity – 2-part design – Not self-locking – Tolerances: acc. catalog – Surface finish of shaft and hub 0.8 < Ra < 3.2 μm
Unit of Measure

Technical Specs

Ma

 N/A 250 N·m

Torque - Mt

 N/A 52500 N·m

Hub Pressure - Ph

 N/A 245 MPa

Ps

 N/A 198 MPa

Fax

 N/A 842 kN

Weight

 N/A 29 kg

Locking Screws

Size

 N/A M16

Dimensions

d

 N/A 165 mm

D

 N/A 290 mm

L

 N/A 98 mm

L1

 N/A 88 mm

ds

 N/A 125 mm

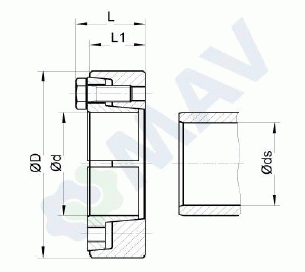

Dimensional Drawing


Shrink Disc MAV 3208/3209 heavy series - dim
