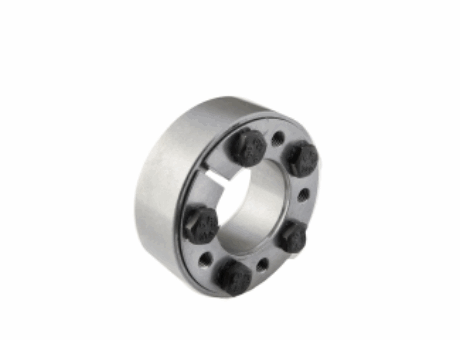

Shrink Disc MAV 3208 heavy series On Fenner Precision Polymers

Product Catalog & CAD Library

External locking device for hollow shaft (hub) - shaft connection – High capacity – 2-part design – Not self-locking – Tolerances: acc. catalog – Surface finish of shaft and hub 0.8 < Ra < 3.2 μm

1 - 25 of 60 | Results Per Page | View | Unit of Measure

1 2 3

CAD help Compare Items

Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #	d	D	Torque - Mt	Hub Pressure - Ph	CAD

3208 140x230 ds95	N/A 140 mm	N/A 230 mm	N/A 20600 N·m	N/A 231 MPa	N/A
3208 140x230 ds100	N/A 140 mm	N/A 230 mm	N/A 24100 N·m	N/A 231 MPa	N/A
3208 140x230 ds105	N/A 140 mm	N/A 230 mm	N/A 28000 N·m	N/A 231 MPa	N/A
3208 155x263 ds105	N/A 155 mm	N/A 263 mm	N/A 29800 N·m	N/A 237 MPa	N/A
3208 155x263 ds110	N/A 155 mm	N/A 263 mm	N/A 34200 N·m	N/A 237 MPa	N/A
3208 155x263 ds115	N/A 155 mm	N/A 263 mm	N/A 38900 N·m	N/A 237 MPa	N/A
3208 165x290 ds115	N/A 165 mm	N/A 290 mm	N/A 42700 N·m	N/A 245 MPa	N/A
3208 165x290 ds120	N/A 165 mm	N/A 290 mm	N/A 48100 N·m	N/A 245 MPa	N/A
3208 165x290 ds125	N/A 165 mm	N/A 290 mm	N/A 52500 N·m	N/A 245 MPa	N/A
3208 175x300 ds125	N/A 175 mm	N/A 300 mm	N/A 57200 N·m	N/A 270 MPa	N/A
3208 175x300 ds130	N/A 175 mm	N/A 300 mm	N/A 63700 N·m	N/A 270 MPa	N/A
3208 175x300 ds135	N/A 175 mm	N/A 300 mm	N/A 70600 N·m	N/A 270 MPa	N/A
3208 185x320 ds135	N/A 185 mm	N/A 320 mm	N/A 87000 N·m	N/A 268 MPa	N/A
3208 185x320 ds140	N/A 185 mm	N/A 320 mm	N/A 96000 N·m	N/A 268 MPa	N/A
3208 185x320 ds145	N/A 185 mm	N/A 320 mm	N/A 105000 N·m	N/A 268 MPa	N/A
3208 200x340 ds150	N/A 200 mm	N/A 340 mm	N/A 101000 N·m	N/A 248 MPa	N/A
3208 200x340 ds155	N/A 200 mm	N/A 340 mm	N/A 110000 N·m	N/A 248 MPa	N/A
3208 200x340 ds160	N/A 200 mm	N/A 340 mm	N/A 120000 N·m	N/A 248 MPa	N/A
3208 220x370 ds160	N/A 220 mm	N/A 370 mm	N/A 128000 N·m	N/A 227 MPa	N/A
3208 220x370 ds165	N/A 220 mm	N/A 370 mm	N/A 139000 N·m	N/A 227 MPa	N/A
3208 220x370 ds170	N/A 220 mm	N/A 370 mm	N/A 151000 N·m	N/A 227 MPa	N/A
3208 240x405 ds170	N/A 240 mm	N/A 405 mm	N/A 161000 N·m	N/A 238 MPa	N/A
3208 240x405 ds180	N/A 240 mm	N/A 405 mm	N/A 187000 N·m	N/A 238 MPa	N/A
3208 240x405 ds190	N/A 240 mm	N/A 405 mm	N/A 211000 N·m	N/A 238 MPa	N/A
3208 260x430 ds190	N/A 260 mm	N/A 430 mm	N/A 236000 N·m	N/A 242 MPa	N/A
