Medium capacity - Self-centering, self-locking - Fixed hub position during tightening - Two thrust rings with double taper - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
Unit of Measure

Technical Specs

Ma

 N/A 690 N·m

Torque - Mt

 N/A 466000 N·m

Hub Pressure - Ph

 N/A 73 MPa

Ps

 N/A 89 MPa

Fax

 N/A 1940 kN

Locking Screws

Size

 N/A M20

Dimensions

d

 N/A 480 mm

D

 N/A 585 mm

L

 N/A 200 mm

L1

 N/A 180 mm

L2

 N/A 172 mm

Dimensional Drawing

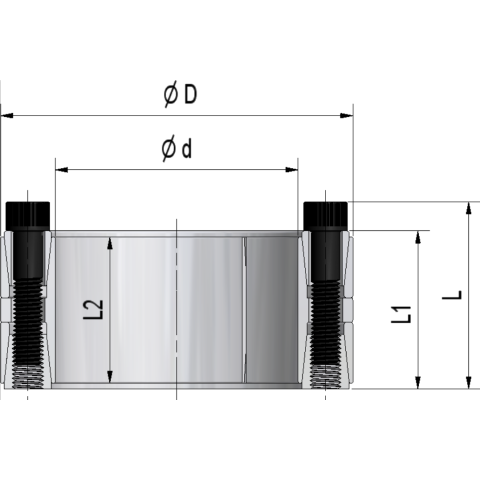

Locking assembly MAV 1800 - dim
