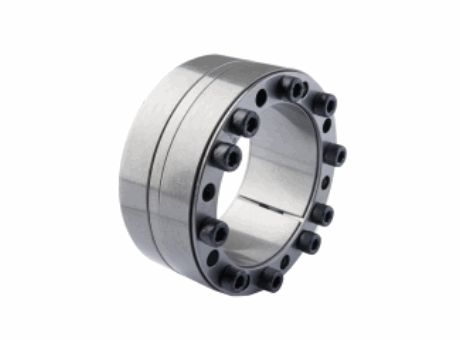

  • Locking assembly MAV 1800
Medium capacity - Self-centering, self-locking - Fixed hub position during tightening - Two thrust rings with double taper - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 25 of 33 | Results Per Page | View | Unit of Measure
1 2
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 100 mm N/A 145 mm N/A 6700 N·m N/A 60 MPa N/A CAD Icon (for items table)
N/A 110 mm N/A 155 mm N/A 8200 N·m N/A 62 MPa N/A CAD Icon (for items table)
N/A 120 mm N/A 165 mm N/A 10700 N·m N/A 70 MPa N/A CAD Icon (for items table)
N/A 130 mm N/A 180 mm N/A 14500 N·m N/A 72 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 190 mm N/A 15600 N·m N/A 68 MPa N/A CAD Icon (for items table)
N/A 150 mm N/A 200 mm N/A 17900 N·m N/A 69 MPa N/A CAD Icon (for items table)
N/A 160 mm N/A 210 mm N/A 22000 N·m N/A 74 MPa N/A CAD Icon (for items table)
N/A 170 mm N/A 225 mm N/A 27700 N·m N/A 76 MPa N/A CAD Icon (for items table)
N/A 180 mm N/A 235 mm N/A 31200 N·m N/A 77 MPa N/A CAD Icon (for items table)
N/A 190 mm N/A 250 mm N/A 37100 N·m N/A 70 MPa N/A CAD Icon (for items table)
N/A 200 mm N/A 260 mm N/A 43400 N·m N/A 75 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 285 mm N/A 55000 N·m N/A 65 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 305 mm N/A 70000 N·m N/A 69 MPa N/A CAD Icon (for items table)
N/A 260 mm N/A 325 mm N/A 90000 N·m N/A 73 MPa N/A CAD Icon (for items table)
N/A 280 mm N/A 355 mm N/A 120000 N·m N/A 77 MPa N/A CAD Icon (for items table)
N/A 300 mm N/A 375 mm N/A 126000 N·m N/A 74 MPa N/A CAD Icon (for items table)
N/A 320 mm N/A 405 mm N/A 185000 N·m N/A 85 MPa N/A CAD Icon (for items table)
N/A 340 mm N/A 425 mm N/A 201000 N·m N/A 81 MPa N/A CAD Icon (for items table)
N/A 360 mm N/A 455 mm N/A 216000 N·m N/A 63 MPa N/A CAD Icon (for items table)
N/A 380 mm N/A 475 mm N/A 257000 N·m N/A 68 MPa N/A CAD Icon (for items table)
N/A 400 mm N/A 495 mm N/A 320000 N·m N/A 77 MPa N/A CAD Icon (for items table)
N/A 420 mm N/A 515 mm N/A 349000 N·m N/A 74 MPa N/A CAD Icon (for items table)
N/A 440 mm N/A 545 mm N/A 394000 N·m N/A 70 MPa N/A CAD Icon (for items table)
N/A 460 mm N/A 565 mm N/A 411000 N·m N/A 68 MPa N/A CAD Icon (for items table)
N/A 480 mm N/A 585 mm N/A 466000 N·m N/A 73 MPa N/A CAD Icon (for items table)
