Low capacity - Not self-centering, not self-locking - Single taper design - Low contact pressures - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
Unit of Measure

Technical Specs

Ma

 N/A 1100 N·m

Torque - Mt

 N/A 880 N·m

Hub Pressure - Ph

 N/A 113 MPa

Ps

 N/A 133 MPa

Fax

 N/A 31900 kN

Locking Screws

Size Nut (DIN 981 14h)

 N/A M60 x 2

Dimensions

d

 N/A 55 mm

D

 N/A 65 mm

L

 N/A 29 mm

L1

 N/A 16.5 mm

Dg

 N/A 80 mm

Dimensional Drawing

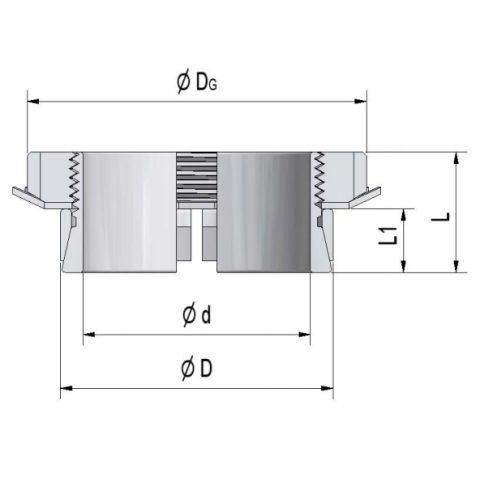

Locking assembly MAV 3505 - dim
