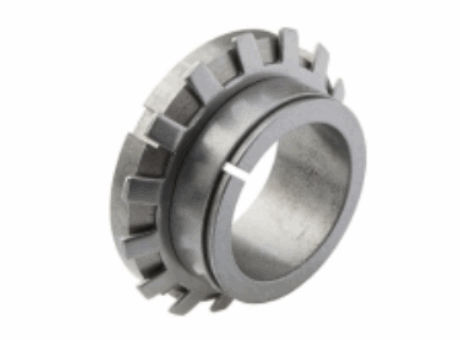

  • Locking assembly MAV 3505
Low capacity - Not self-centering, not self-locking - Single taper design - Low contact pressures - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 22 of 22 | Results Per Page | View | Unit of Measure
1
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 14 mm N/A 25 mm N/A 40 N·m N/A 89 MPa N/A CAD Icon (for items table)
N/A 15 mm N/A 25 mm N/A 40 N·m N/A 89 MPa N/A CAD Icon (for items table)
N/A 16 mm N/A 25 mm N/A 40 N·m N/A 89 MPa N/A CAD Icon (for items table)
N/A 17 mm N/A 25 mm N/A 50 N·m N/A 89 MPa N/A CAD Icon (for items table)
N/A 18 mm N/A 30 mm N/A 60 N·m N/A 95 MPa N/A CAD Icon (for items table)
N/A 19 mm N/A 30 mm N/A 70 N·m N/A 95 MPa N/A CAD Icon (for items table)
N/A 20 mm N/A 30 mm N/A 70 N·m N/A 95 MPa N/A CAD Icon (for items table)
N/A 22 mm N/A 35 mm N/A 90 N·m N/A 94 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 35 mm N/A 100 N·m N/A 94 MPa N/A CAD Icon (for items table)
N/A 25 mm N/A 35 mm N/A 100 N·m N/A 94 MPa N/A CAD Icon (for items table)
N/A 28 mm N/A 40 mm N/A 150 N·m N/A 104 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 40 mm N/A 160 N·m N/A 104 MPa N/A CAD Icon (for items table)
N/A 32 mm N/A 45 mm N/A 270 N·m N/A 128 MPa N/A CAD Icon (for items table)
N/A 35 mm N/A 45 mm N/A 290 N·m N/A 128 MPa N/A CAD Icon (for items table)
N/A 38 mm N/A 50 mm N/A 410 N·m N/A 117 MPa N/A CAD Icon (for items table)
N/A 40 mm N/A 50 mm N/A 430 N·m N/A 117 MPa N/A CAD Icon (for items table)
N/A 42 mm N/A 55 mm N/A 520 N·m N/A 122 MPa N/A CAD Icon (for items table)
N/A 45 mm N/A 55 mm N/A 560 N·m N/A 122 MPa N/A CAD Icon (for items table)
N/A 48 mm N/A 60 mm N/A 630 N·m N/A 119 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 60 mm N/A 660 N·m N/A 119 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 65 mm N/A 880 N·m N/A 113 MPa N/A CAD Icon (for items table)
N/A 60 mm N/A 70 mm N/A 1080 N·m N/A 118 MPa N/A CAD Icon (for items table)
