High capacity - Self-centering, self-locking - Two thrust rings with single taper design - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
Unit of Measure

Technical Specs

Ma

 N/A 41 N·m

Torque - Mt

 N/A 4600 N·m

Hub Pressure - Ph

 N/A 108 MPa

Ps

 N/A 173 MPa

Fax

 N/A 183 kN

Locking Screws

Size

 N/A M8

Dimensions

d

 N/A 50 mm

D

 N/A 80 mm

L

 N/A 86 mm

L1

 N/A 78 mm

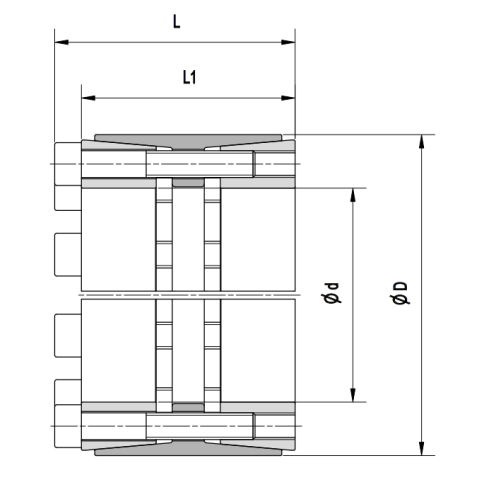

Dimensional Drawing


Locking assembly MAV 4061L- dim
