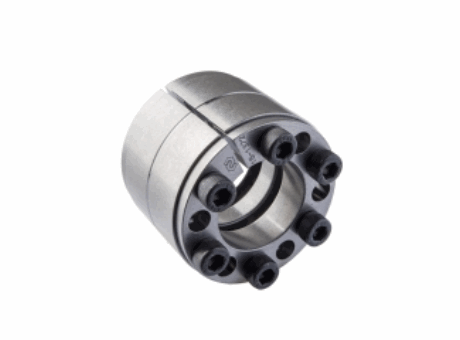

  • Locking assembly MAV 4061L
High capacity - Self-centering, self-locking - Two thrust rings with single taper design - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 50 mm N/A 80 mm N/A 4600 N·m N/A 108 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 85 mm N/A 5600 N·m N/A 114 MPa N/A CAD Icon (for items table)
N/A 60 mm N/A 90 mm N/A 6800 N·m N/A 120 MPa N/A CAD Icon (for items table)
N/A 65 mm N/A 95 mm N/A 7400 N·m N/A 114 MPa N/A CAD Icon (for items table)
N/A 70 mm N/A 110 mm N/A 12300 N·m N/A 109 MPa N/A CAD Icon (for items table)
N/A 75 mm N/A 115 mm N/A 13200 N·m N/A 104 MPa N/A CAD Icon (for items table)
N/A 80 mm N/A 120 mm N/A 15500 N·m N/A 110 MPa N/A CAD Icon (for items table)
N/A 85 mm N/A 125 mm N/A 16500 N·m N/A 106 MPa N/A CAD Icon (for items table)
N/A 90 mm N/A 130 mm N/A 19100 N·m N/A 111 MPa N/A CAD Icon (for items table)
N/A 95 mm N/A 135 mm N/A 20100 N·m N/A 107 MPa N/A CAD Icon (for items table)
N/A 100 mm N/A 145 mm N/A 29000 N·m N/A 112 MPa N/A CAD Icon (for items table)
N/A 110 mm N/A 155 mm N/A 34800 N·m N/A 114 MPa N/A CAD Icon (for items table)
N/A 120 mm N/A 165 mm N/A 44300 N·m N/A 125 MPa N/A CAD Icon (for items table)
