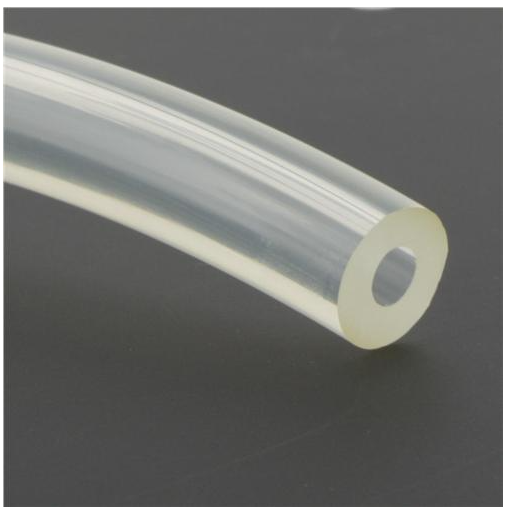

13mm, 9/16" Round Cross Sections
Eagle Polyurethane
Clear
Filter
Dimensions ø (in)
Dimensions ø (mm)
Minimum Pulley ø (in)
Minimum Pulley ø (mm)
Weight (lbs)
Part Number |
Dimensions ø |
Minimum Pulley ø |
Working Load @ Percent Tension 4% |
Working Load @ Percent Tension 6% |
Working Load @ Percent Tension 8% |
Working Load @ Percent Tension 10% |
Weight |
|---|---|---|---|---|---|---|---|
| L04QC8513 | Dimensions ø N/A 13 mm | Minimum Pulley ø N/A 4.09 in104 mm | Working Load @ Percent Tension 4% N/A 3.5 lbs15.3 N | Working Load @ Percent Tension 6% N/A 5.4 lbs23.8 N | Working Load @ Percent Tension 8% N/A 7.2 lbs31.9 N | Working Load @ Percent Tension 10% N/A 8.9 lbs39.4 N | Weight N/A |
| L04QR8513M | Dimensions ø N/A 13 mm | Minimum Pulley ø N/A 4.09 in104 mm | Working Load @ Percent Tension 4% N/A 3.5 lbs15.3 N | Working Load @ Percent Tension 6% N/A 5.4 lbs23.8 N | Working Load @ Percent Tension 8% N/A 7.2 lbs31.9 N | Working Load @ Percent Tension 10% N/A 8.9 lbs39.4 N | Weight N/A 13 lbs |
| 4941106 | Dimensions ø N/A 9/16 in | Minimum Pulley ø N/A 3.94 in100 mm | Working Load @ Percent Tension 4% N/A 6.9 lbs30.6 N | Working Load @ Percent Tension 6% N/A 10.6 lbs47.1 N | Working Load @ Percent Tension 8% N/A 14.2 lbs63 N | Working Load @ Percent Tension 10% N/A 17.6 lbs78.2 N | Weight N/A 13 lbs |
| 1032018 | Dimensions ø N/A 9/16 in | Minimum Pulley ø N/A 4.5 in114 mm | Working Load @ Percent Tension 4% N/A 9.8 lbs43.7 N | Working Load @ Percent Tension 6% N/A 15.1 lbs67.3 N | Working Load @ Percent Tension 8% N/A 20.2 lbs89.8 N | Working Load @ Percent Tension 10% N/A 24.9 lbs110.6 N | Weight N/A 13.7 lbs |
| 4934147 | Dimensions ø N/A 9/16 in | Minimum Pulley ø N/A 4.5 in114 mm | Working Load @ Percent Tension 4% N/A 9.8 lbs43.7 N | Working Load @ Percent Tension 6% N/A 15.1 lbs67.3 N | Working Load @ Percent Tension 8% N/A 20.2 lbs89.8 N | Working Load @ Percent Tension 10% N/A 24.9 lbs110.6 N | Weight N/A 10.08 lbs |
| 4908027 | Dimensions ø N/A 9/16 in | Minimum Pulley ø N/A 4.5 in114 mm | Working Load @ Percent Tension 4% N/A 9.8 lbs43.7 N | Working Load @ Percent Tension 6% N/A 15.1 lbs67.3 N | Working Load @ Percent Tension 8% N/A 20.2 lbs89.8 N | Working Load @ Percent Tension 10% N/A 24.9 lbs110.6 N | Weight N/A 13.75 lbs |
| 4940036 | Dimensions ø N/A 9/16 in | Minimum Pulley ø N/A 5.63 in143 mm | Working Load @ Percent Tension 4% N/A 53.7 lbs238.6 N | Working Load @ Percent Tension 6% N/A 77.3 lbs343.8 N | Working Load @ Percent Tension 8% N/A 97.3 lbs432.7 N | Working Load @ Percent Tension 10% N/A 113.8 lbs506.3 N | Weight N/A 14 lbs |
| 4907027 | Dimensions ø N/A 9/16 in | Minimum Pulley ø N/A 5.63 in143 mm | Working Load @ Percent Tension 4% N/A 11.35 lbs50.5 N | Working Load @ Percent Tension 6% N/A 17.03 lbs75.8 N | Working Load @ Percent Tension 8% N/A 22.71 lbs101 N | Working Load @ Percent Tension 10% N/A 28.39 lbs126.3 N | Weight N/A 14.1 lbs |
| L04CON13S | Dimensions ø N/A | Minimum Pulley ø N/A | Working Load @ Percent Tension 4% N/A | Working Load @ Percent Tension 6% N/A | Working Load @ Percent Tension 8% N/A | Working Load @ Percent Tension 10% N/A | Weight N/A 0.2 lbs |
| 4935033 | Dimensions ø N/A | Minimum Pulley ø N/A | Working Load @ Percent Tension 4% N/A | Working Load @ Percent Tension 6% N/A | Working Load @ Percent Tension 8% N/A | Working Load @ Percent Tension 10% N/A | Weight N/A 0.2094 lbs |
| 4940062 | Dimensions ø N/A 9/16 in | Minimum Pulley ø N/A 5.63 in143 mm | Working Load @ Percent Tension 4% N/A 39.3 lbs174.9 N | Working Load @ Percent Tension 6% N/A | Working Load @ Percent Tension 8% N/A | Working Load @ Percent Tension 10% N/A | Weight N/A 13.9 lbs |
| 5218027 | Dimensions ø N/A 9/16 in | Minimum Pulley ø N/A 6.19 in157 mm | Working Load @ Percent Tension 4% N/A 75.8 lbs337.2 N | Working Load @ Percent Tension 6% N/A | Working Load @ Percent Tension 8% N/A | Working Load @ Percent Tension 10% N/A | Weight N/A 13.9 lbs |
