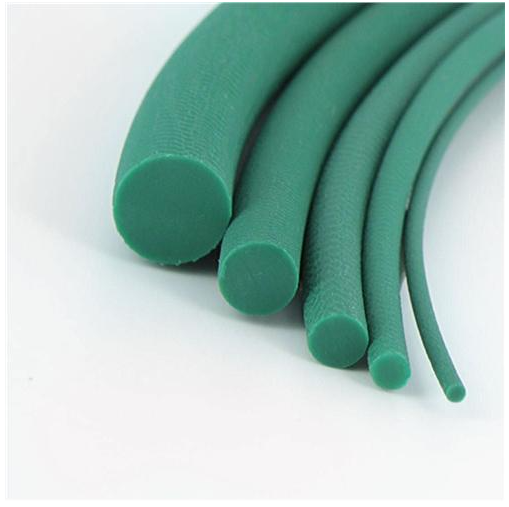

18mm, 3/4" Round Cross Sections
Eagle Polyurethane
Clear
Filter
Dimensions ø (in)
Dimensions ø (mm)
Minimum Pulley ø (in)
Minimum Pulley ø (mm)
Weight (lbs)
Part Number |
Dimensions ø |
Minimum Pulley ø |
Working Load @ Percent Tension 4% |
Working Load @ Percent Tension 6% |
Working Load @ Percent Tension 8% |
Working Load @ Percent Tension 10% |
Weight |
|---|---|---|---|---|---|---|---|
| L04G8918MS | Dimensions ø N/A 18 mm | Minimum Pulley ø N/A 6.38 in162 mm | Working Load @ Percent Tension 4% N/A 25.9 lbs115.2 N | Working Load @ Percent Tension 6% N/A 42.5 lbs189.2 N | Working Load @ Percent Tension 8% N/A 58.4 lbs259.9 N | Working Load @ Percent Tension 10% N/A 73 lbs324.6 N | Weight N/A 22 lbs |
| 4940091 | Dimensions ø N/A 18 mm | Minimum Pulley ø N/A 6.38 in162 mm | Working Load @ Percent Tension 4% N/A 18.8 lbs83.7 N | Working Load @ Percent Tension 6% N/A 30.9 lbs137.5 N | Working Load @ Percent Tension 8% N/A 42.4 lbs188.8 N | Working Load @ Percent Tension 10% N/A 53 lbs235.9 N | Weight N/A 22 lbs |
| L04BY4018 | Dimensions ø N/A 18 mm | Minimum Pulley ø N/A 8.5 in216 mm | Working Load @ Percent Tension 4% N/A 67.4 lbs299.7 N | Working Load @ Percent Tension 6% N/A 103.6 lbs460.7 N | Working Load @ Percent Tension 8% N/A 135.8 lbs604.2 N | Working Load @ Percent Tension 10% N/A 163.6 lbs727.8 N | Weight N/A 22.5 lbs |
| L04BY5518 | Dimensions ø N/A 18 mm | Minimum Pulley ø N/A 9.21 in234 mm | Working Load @ Percent Tension 4% N/A 127.2 lbs565.8 N | Working Load @ Percent Tension 6% N/A 195.7 lbs870.6 N | Working Load @ Percent Tension 8% N/A 254.4 lbs1131.6 N | Working Load @ Percent Tension 10% N/A 301.4 lbs1340.7 N | Weight N/A |
| 1032024 | Dimensions ø N/A 3/4 in | Minimum Pulley ø N/A 6 in152 mm | Working Load @ Percent Tension 4% N/A 17.5 lbs77.7 N | Working Load @ Percent Tension 6% N/A 26.9 lbs119.6 N | Working Load @ Percent Tension 8% N/A 35.9 lbs159.6 N | Working Load @ Percent Tension 10% N/A 44.2 lbs196.6 N | Weight N/A 25.4 lbs |
| 4908033 | Dimensions ø N/A 3/4 in | Minimum Pulley ø N/A 6 in152 mm | Working Load @ Percent Tension 4% N/A 17.5 lbs77.7 N | Working Load @ Percent Tension 6% N/A 26.9 lbs119.6 N | Working Load @ Percent Tension 8% N/A 35.9 lbs159.6 N | Working Load @ Percent Tension 10% N/A 44.2 lbs196.6 N | Weight N/A 25.4 lbs |
| 4907033 | Dimensions ø N/A 3/4 in | Minimum Pulley ø N/A 7.5 in191 mm | Working Load @ Percent Tension 4% N/A 20.19 lbs89.8 N | Working Load @ Percent Tension 6% N/A 30.28 lbs134.7 N | Working Load @ Percent Tension 8% N/A 40.37 lbs179.6 N | Working Load @ Percent Tension 10% N/A 50.46 lbs224.5 N | Weight N/A 25.4 lbs |
| 4935034 | Dimensions ø N/A | Minimum Pulley ø N/A | Working Load @ Percent Tension 4% N/A | Working Load @ Percent Tension 6% N/A | Working Load @ Percent Tension 8% N/A | Working Load @ Percent Tension 10% N/A | Weight N/A 0.2998 lbs |
| 4940055 | Dimensions ø N/A 18 mm | Minimum Pulley ø N/A 7.09 in180 mm | Working Load @ Percent Tension 4% N/A 280.9 lbs1249.7 N | Working Load @ Percent Tension 6% N/A | Working Load @ Percent Tension 8% N/A | Working Load @ Percent Tension 10% N/A | Weight N/A 21.55 lbs |
| 4940064 | Dimensions ø N/A 3/4 in | Minimum Pulley ø N/A 7.5 in191 mm | Working Load @ Percent Tension 4% N/A 69.9 lbs311 N | Working Load @ Percent Tension 6% N/A | Working Load @ Percent Tension 8% N/A | Working Load @ Percent Tension 10% N/A | Weight N/A 28.4 lbs |
| 5218033 | Dimensions ø N/A 3/4 in | Minimum Pulley ø N/A 8.25 in210 mm | Working Load @ Percent Tension 4% N/A 75.8 lbs337.2 N | Working Load @ Percent Tension 6% N/A | Working Load @ Percent Tension 8% N/A | Working Load @ Percent Tension 10% N/A | Weight N/A 24.6 lbs |
