Flat Belting

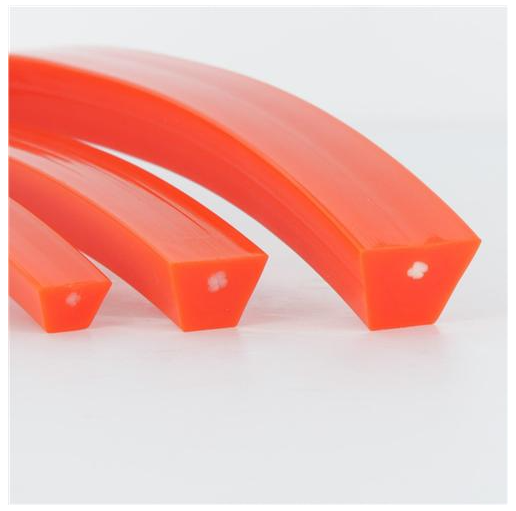

Eagle Polyurethane
Part Number |
Cross Section |
Minimum Pulley ø |
Working Load @ Percent Tension 4% |
Working Load @ Percent Tension 6% |
Working Load @ Percent Tension 8% |
Working Load @ Percent Tension 10% |
Weight |
|---|---|---|---|---|---|---|---|
| 1032121 | Cross Section N/A .055" × .375" | Minimum Pulley ø N/A 0.44 in11 mm | Working Load @ Percent Tension 4% N/A 0.6 lbs2.6 N | Working Load @ Percent Tension 6% N/A 0.9 lbs3.9 N | Working Load @ Percent Tension 8% N/A 1.1 lbs5 N | Working Load @ Percent Tension 10% N/A 1.4 lbs6.1 N | Weight N/A 1.8 lbs |
| 1032126 | Cross Section N/A .062" × .5" | Minimum Pulley ø N/A 0.5 in13 mm | Working Load @ Percent Tension 4% N/A 0.9 lbs3.9 N | Working Load @ Percent Tension 6% N/A 1.3 lbs5.8 N | Working Load @ Percent Tension 8% N/A 1.7 lbs7.6 N | Working Load @ Percent Tension 10% N/A 2.1 lbs9.2 N | Weight N/A 2.4 lbs |
| 1032210 | Cross Section N/A .062" × .75"‡ | Minimum Pulley ø N/A 0.5 in13 mm | Working Load @ Percent Tension 4% N/A 2.3 lbs10.1 N | Working Load @ Percent Tension 6% N/A 3.4 lbs15.1 N | Working Load @ Percent Tension 8% N/A 4.4 lbs19.7 N | Working Load @ Percent Tension 10% N/A 5.4 lbs23.9 N | Weight N/A 5 lbs |
| 1032148 | Cross Section N/A .062" × 1.5" | Minimum Pulley ø N/A 0.5 in13 mm | Working Load @ Percent Tension 4% N/A 2.6 lbs11.6 N | Working Load @ Percent Tension 6% N/A 3.9 lbs17.4 N | Working Load @ Percent Tension 8% N/A 5.1 lbs22.7 N | Working Load @ Percent Tension 10% N/A 6.2 lbs27.6 N | Weight N/A 5.6 lbs |
| 1032155 | Cross Section N/A .062" × 1.75" | Minimum Pulley ø N/A 0.5 in13 mm | Working Load @ Percent Tension 4% N/A 3 lbs13.5 N | Working Load @ Percent Tension 6% N/A 4.6 lbs20.3 N | Working Load @ Percent Tension 8% N/A 6 lbs26.5 N | Working Load @ Percent Tension 10% N/A 7.2 lbs32.2 N | Weight N/A 6.45 lbs |
| 1032160 | Cross Section N/A .062" × 2" | Minimum Pulley ø N/A 0.5 in13 mm | Working Load @ Percent Tension 4% N/A 3.5 lbs15.5 N | Working Load @ Percent Tension 6% N/A 5.2 lbs23.2 N | Working Load @ Percent Tension 8% N/A 6.8 lbs30.3 N | Working Load @ Percent Tension 10% N/A 8.3 lbs36.8 N | Weight N/A 7.2 lbs |
| 1032170 | Cross Section N/A .062" × 3" | Minimum Pulley ø N/A 0.5 in13 mm | Working Load @ Percent Tension 4% N/A 5.2 lbs23.2 N | Working Load @ Percent Tension 6% N/A 7.8 lbs34.8 N | Working Load @ Percent Tension 8% N/A 10.2 lbs45.5 N | Working Load @ Percent Tension 10% N/A 12.4 lbs55.2 N | Weight N/A 13.2 lbs |
| 1032136 | Cross Section N/A .078" × .75" | Minimum Pulley ø N/A 0.62 in16 mm | Working Load @ Percent Tension 4% N/A 1.6 lbs7.3 N | Working Load @ Percent Tension 6% N/A 2.4 lbs10.9 N | Working Load @ Percent Tension 8% N/A 3.2 lbs14.2 N | Working Load @ Percent Tension 10% N/A 3.9 lbs17.3 N | Weight N/A 3.7 lbs |
| 1032142 | Cross Section N/A .090" × 1" | Minimum Pulley ø N/A 0.72 in18 mm | Working Load @ Percent Tension 4% N/A 2.5 lbs11.2 N | Working Load @ Percent Tension 6% N/A 3.8 lbs16.8 N | Working Load @ Percent Tension 8% N/A 4.9 lbs21.9 N | Working Load @ Percent Tension 10% N/A 6 lbs26.6 N | Weight N/A 5.8 lbs |
| 1032146 | Cross Section N/A .090" × 1.25" | Minimum Pulley ø N/A 0.72 in18 mm | Working Load @ Percent Tension 4% N/A 3.1 lbs14 N | Working Load @ Percent Tension 6% N/A 4.7 lbs21 N | Working Load @ Percent Tension 8% N/A 6.2 lbs27.4 N | Working Load @ Percent Tension 10% N/A 7.5 lbs33.3 N | Weight N/A 7.3 lbs |
| 1032151 | Cross Section N/A .090" × 1.5" | Minimum Pulley ø N/A 0.72 in18 mm | Working Load @ Percent Tension 4% N/A 3.8 lbs16.8 N | Working Load @ Percent Tension 6% N/A 5.7 lbs25.2 N | Working Load @ Percent Tension 8% N/A 7.4 lbs33 N | Working Load @ Percent Tension 10% N/A 9 lbs40 N | Weight N/A 8.1 lbs |
| 1032163 | Cross Section N/A .090" × 2" | Minimum Pulley ø N/A 0.72 in18 mm | Working Load @ Percent Tension 4% N/A 5 lbs22.4 N | Working Load @ Percent Tension 6% N/A 7.6 lbs33.6 N | Working Load @ Percent Tension 8% N/A 9.9 lbs44 N | Working Load @ Percent Tension 10% N/A 12 lbs53.4 N | Weight N/A 11 lbs |
| 1032133 | Cross Section N/A .125" × .625" | Minimum Pulley ø N/A 1 in25 mm | Working Load @ Percent Tension 4% N/A 2.2 lbs9.7 N | Working Load @ Percent Tension 6% N/A 3.3 lbs14.5 N | Working Load @ Percent Tension 8% N/A 4.3 lbs19 N | Working Load @ Percent Tension 10% N/A 5.2 lbs23 N | Weight N/A 5.2 lbs |
| 1032143 | Cross Section N/A .125" × 1" | Minimum Pulley ø N/A 1 in25 mm | Working Load @ Percent Tension 4% N/A 3.5 lbs15.5 N | Working Load @ Percent Tension 6% N/A 5.2 lbs23.3 N | Working Load @ Percent Tension 8% N/A 6.9 lbs30.5 N | Working Load @ Percent Tension 10% N/A 8.3 lbs37 N | Weight N/A 7.7 lbs |
| 1032134 | Cross Section N/A .250" × .625" | Minimum Pulley ø N/A 2 in51 mm | Working Load @ Percent Tension 4% N/A 4.4 lbs19.4 N | Working Load @ Percent Tension 6% N/A 6.5 lbs29 N | Working Load @ Percent Tension 8% N/A 8.5 lbs38 N | Working Load @ Percent Tension 10% N/A 10.4 lbs46.1 N | Weight N/A 8.4 lbs |
