Rigid coupling MAV 1004 On Fenner Precision Polymers

Product Catalog & CAD Library

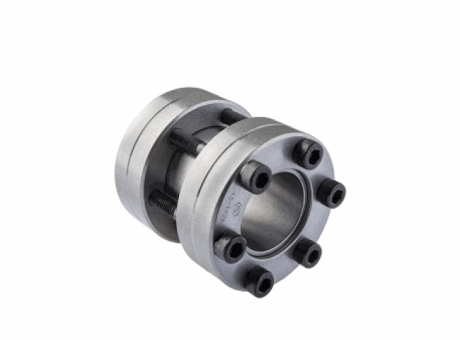

Rigid shaft-to-shaft coupling - Low capacity - Three-part design - Self-locking - Shafts tolerance: h9 max - Shafts surface finish 0.8 < Ra < 3.2 μm

1 - 25 of 34 | Results Per Page | View | Unit of Measure

1 2

CAD help Compare Items

Clear Filter

Item #	d	D	Torque - Mt	CAD

1004 15x45	N/A 15 mm	N/A 45 mm	N/A 170 N·m	N/A
1004 16x45	N/A 16 mm	N/A 45 mm	N/A 190 N·m	N/A
1004 17x45	N/A 17 mm	N/A 45 mm	N/A 200 N·m	N/A
1004 18x50	N/A 18 mm	N/A 50 mm	N/A 210 N·m	N/A
1004 19x50	N/A 19 mm	N/A 50 mm	N/A 220 N·m	N/A
1004 20x50	N/A 20 mm	N/A 50 mm	N/A 230 N·m	N/A
1004 22x55	N/A 22 mm	N/A 55 mm	N/A 380 N·m	N/A
1004 24x55	N/A 24 mm	N/A 55 mm	N/A 420 N·m	N/A
1004 25x55	N/A 25 mm	N/A 55 mm	N/A 440 N·m	N/A
1004 26x60	N/A 26 mm	N/A 60 mm	N/A 450 N·m	N/A
1004 28x60	N/A 28 mm	N/A 60 mm	N/A 490 N·m	N/A
1004 30x60	N/A 30 mm	N/A 60 mm	N/A 520 N·m	N/A
1004 32x65	N/A 32 mm	N/A 65 mm	N/A 560 N·m	N/A
1004 35x75	N/A 35 mm	N/A 75 mm	N/A 660 N·m	N/A
1004 38x75	N/A 38 mm	N/A 75 mm	N/A 710 N·m	N/A
1004 40x75	N/A 40 mm	N/A 75 mm	N/A 750 N·m	N/A
1004 42x78	N/A 42 mm	N/A 78 mm	N/A 790 N·m	N/A
1004 45x85	N/A 45 mm	N/A 85 mm	N/A 1300 N·m	N/A
1004 48x90	N/A 48 mm	N/A 90 mm	N/A 1400 N·m	N/A
1004 50x90	N/A 50 mm	N/A 90 mm	N/A 1400 N·m	N/A
1004 55x95	N/A 55 mm	N/A 95 mm	N/A 2100 N·m	N/A
1004 60x100	N/A 60 mm	N/A 100 mm	N/A 2300 N·m	N/A
1004 65x105	N/A 65 mm	N/A 105 mm	N/A 2400 N·m	N/A
1004 68x115	N/A 68 mm	N/A 115 mm	N/A 3100 N·m	N/A
1004 70x115	N/A 70 mm	N/A 115 mm	N/A 3200 N·m	N/A
