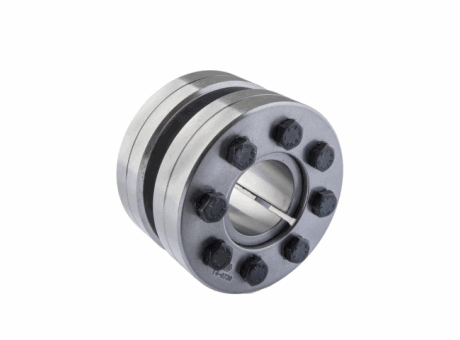

  • Rigid coupling MAV 1204
Rigid shaft-to-shaft coupling - Medium capacity - Three-part design - Compact design - Not self-locking (from size 15x52 and above) - Shafts tolerance: h9 max - Shafts surface finish 0.8 < Ra < 3.2 μm
1 - 25 of 50 | Results Per Page | View | Unit of Measure
1 2
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Item #

d

D

Torque - Mt

CAD

N/A 6 mm N/A 35 mm N/A 27 N·m N/A CAD Icon (for items table)
N/A 7 mm N/A 35 mm N/A 31 N·m N/A CAD Icon (for items table)
N/A 8 mm N/A 35 mm N/A 36 N·m N/A CAD Icon (for items table)
N/A 9 mm N/A 39 mm N/A 50 N·m N/A CAD Icon (for items table)
N/A 10 mm N/A 39 mm N/A 55 N·m N/A CAD Icon (for items table)
N/A 11 mm N/A 39 mm N/A 61 N·m N/A CAD Icon (for items table)
N/A 12 mm N/A 44 mm N/A 80 N·m N/A CAD Icon (for items table)
N/A 13 mm N/A 44 mm N/A 87 N·m N/A CAD Icon (for items table)
N/A 14 mm N/A 44 mm N/A 93 N·m N/A CAD Icon (for items table)
N/A 15 mm N/A 52 mm N/A 160 N·m N/A CAD Icon (for items table)
N/A 16 mm N/A 52 mm N/A 170 N·m N/A CAD Icon (for items table)
N/A 17 mm N/A 52 mm N/A 180 N·m N/A CAD Icon (for items table)
N/A 18 mm N/A 52 mm N/A 200 N·m N/A CAD Icon (for items table)
N/A 19 mm N/A 52 mm N/A 210 N·m N/A CAD Icon (for items table)
N/A 20 mm N/A 60 mm N/A 360 N·m N/A CAD Icon (for items table)
N/A 22 mm N/A 60 mm N/A 400 N·m N/A CAD Icon (for items table)
N/A 24 mm N/A 60 mm N/A 440 N·m N/A CAD Icon (for items table)
N/A 25 mm N/A 66 mm N/A 630 N·m N/A CAD Icon (for items table)
N/A 28 mm N/A 66 mm N/A 710 N·m N/A CAD Icon (for items table)
N/A 29 mm N/A 66 mm N/A 740 N·m N/A CAD Icon (for items table)
N/A 30 mm N/A 76 mm N/A 870 N·m N/A CAD Icon (for items table)
N/A 32 mm N/A 76 mm N/A 930 N·m N/A CAD Icon (for items table)
N/A 35 mm N/A 76 mm N/A 1000 N·m N/A CAD Icon (for items table)
N/A 36 mm N/A 96 mm N/A 1800 N·m N/A CAD Icon (for items table)
N/A 40 mm N/A 96 mm N/A 1900 N·m N/A CAD Icon (for items table)
