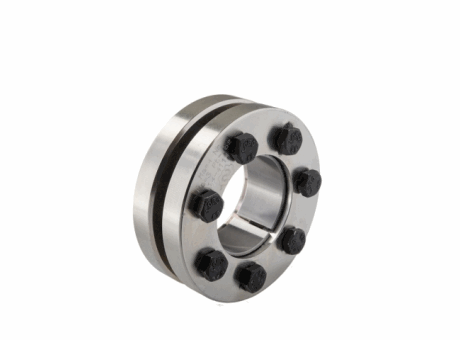

  • Shrink Disc MAV 2008 standard series
External locking device for hollow shaft (hub) - shaft connection - Medium capacity - 3-part design - Not self-locking - Tolerances: acc. catalog - Surface finish of shaft and hub 0.8 < Ra < 3.2 μm
1 - 25 of 147 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 14 mm N/A 38 mm N/A 36 N·m N/A 335 MPa N/A CAD Icon (for items table)
N/A 14 mm N/A 38 mm N/A 54 N·m N/A 335 MPa N/A CAD Icon (for items table)
N/A 14 mm N/A 38 mm N/A 82 N·m N/A 335 MPa N/A CAD Icon (for items table)
N/A 16 mm N/A 41 mm N/A 38 N·m N/A 244 MPa N/A CAD Icon (for items table)
N/A 16 mm N/A 41 mm N/A 65 N·m N/A 244 MPa N/A CAD Icon (for items table)
N/A 16 mm N/A 41 mm N/A 97 N·m N/A 244 MPa N/A CAD Icon (for items table)
N/A 18 mm N/A 44 mm N/A 96 N·m N/A 289 MPa N/A CAD Icon (for items table)
N/A 18 mm N/A 44 mm N/A 130 N·m N/A 289 MPa N/A CAD Icon (for items table)
N/A 20 mm N/A 46 mm N/A 130 N·m N/A 325 MPa N/A CAD Icon (for items table)
N/A 18 mm N/A 44 mm N/A 170 N·m N/A 289 MPa N/A CAD Icon (for items table)
N/A 20 mm N/A 46 mm N/A 170 N·m N/A 325 MPa N/A CAD Icon (for items table)
N/A 20 mm N/A 46 mm N/A 210 N·m N/A 325 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 50 mm N/A 220 N·m N/A 279 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 50 mm N/A 280 N·m N/A 279 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 50 mm N/A 330 N·m N/A 279 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 60 mm N/A 350 N·m N/A 228 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 60 mm N/A 400 N·m N/A 228 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 60 mm N/A 470 N·m N/A 228 MPa N/A CAD Icon (for items table)
N/A 36 mm N/A 72 mm N/A 770 N·m N/A 297 MPa N/A CAD Icon (for items table)
N/A 36 mm N/A 72 mm N/A 960 N·m N/A 297 MPa N/A CAD Icon (for items table)
N/A 36 mm N/A 72 mm N/A 980 N·m N/A 297 MPa N/A CAD Icon (for items table)
N/A 44 mm N/A 80 mm N/A 1200 N·m N/A 306 MPa N/A CAD Icon (for items table)
N/A 44 mm N/A 80 mm N/A 1400 N·m N/A 306 MPa N/A CAD Icon (for items table)
N/A 44 mm N/A 80 mm N/A 1500 N·m N/A 306 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 90 mm N/A 1500 N·m N/A 280 MPa N/A CAD Icon (for items table)
