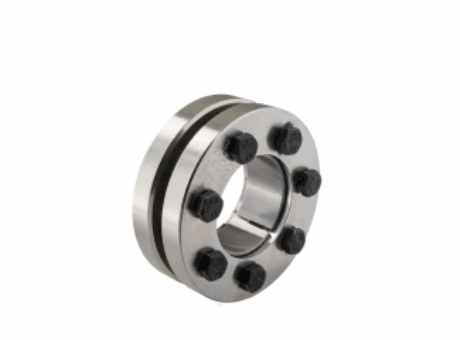

  • Shrink Disc MAV 2208 heavy series
External locking device for hollow shaft (hub) - shaft connection – High capacity – 3-part design – Not self-locking – Tolerances: acc. catalog – Surface finish of shaft and hub 0.8 < Ra < 3.2 μm
1 - 25 of 90 | Results Per Page | View | Unit of Measure
1 2 3 4
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 40 mm N/A 80 mm N/A 1210 N·m N/A 296 MPa N/A CAD Icon (for items table)
N/A 40 mm N/A 80 mm N/A 1320 N·m N/A 296 MPa N/A CAD Icon (for items table)
N/A 44 mm N/A 85 mm N/A 1650 N·m N/A 290 MPa N/A CAD Icon (for items table)
N/A 44 mm N/A 85 mm N/A 2010 N·m N/A 290 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 95 mm N/A 2750 N·m N/A 345 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 95 mm N/A 3210 N·m N/A 345 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 105 mm N/A 3070 N·m N/A 313 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 105 mm N/A 3530 N·m N/A 313 MPa N/A CAD Icon (for items table)
N/A 62 mm N/A 115 mm N/A 3170 N·m N/A 278 MPa N/A CAD Icon (for items table)
N/A 62 mm N/A 115 mm N/A 3600 N·m N/A 278 MPa N/A CAD Icon (for items table)
N/A 68 mm N/A 120 mm N/A 4020 N·m N/A 290 MPa N/A CAD Icon (for items table)
N/A 68 mm N/A 120 mm N/A 4140 N·m N/A 290 MPa N/A CAD Icon (for items table)
N/A 75 mm N/A 145 mm N/A 5680 N·m N/A 299 MPa N/A CAD Icon (for items table)
N/A 75 mm N/A 145 mm N/A 6710 N·m N/A 299 MPa N/A CAD Icon (for items table)
N/A 80 mm N/A 145 mm N/A 6510 N·m N/A 280 MPa N/A CAD Icon (for items table)
N/A 80 mm N/A 145 mm N/A 7560 N·m N/A 280 MPa N/A CAD Icon (for items table)
N/A 90 mm N/A 160 mm N/A 7500 N·m N/A 256 MPa N/A CAD Icon (for items table)
N/A 90 mm N/A 160 mm N/A 8630 N·m N/A 256 MPa N/A CAD Icon (for items table)
N/A 100 mm N/A 170 mm N/A 7900 N·m N/A 262 MPa N/A CAD Icon (for items table)
N/A 100 mm N/A 170 mm N/A 9900 N·m N/A 262 MPa N/A CAD Icon (for items table)
N/A 100 mm N/A 170 mm N/A 12100 N·m N/A 262 MPa N/A CAD Icon (for items table)
N/A 110 mm N/A 185 mm N/A 12300 N·m N/A 251 MPa N/A CAD Icon (for items table)
N/A 110 mm N/A 185 mm N/A 14900 N·m N/A 251 MPa N/A CAD Icon (for items table)
N/A 110 mm N/A 185 mm N/A 16400 N·m N/A 251 MPa N/A CAD Icon (for items table)
N/A 125 mm N/A 215 mm N/A 20200 N·m N/A 297 MPa N/A CAD Icon (for items table)
