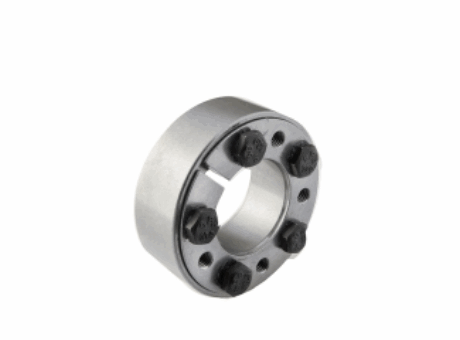

  • Shrink Disc MAV 3008 standard series
External locking device for hollow shaft (hub) - shaft connection - Medium capacity - 2-part design - Not self-locking - Tolerances: acc. catalog - Surface finish of shaft and hub 0.8 < Ra < 3.2 μm
1 - 25 of 130 | Results Per Page | View | Unit of Measure
1 2 3 4 5 »
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 12 mm N/A 35 mm N/A 21 N·m N/A 301 MPa N/A CAD Icon (for items table)
N/A 12 mm N/A 35 mm N/A 40 N·m N/A 301 MPa N/A CAD Icon (for items table)
N/A 14 mm N/A 38 mm N/A 29 N·m N/A 258 MPa N/A CAD Icon (for items table)
N/A 14 mm N/A 38 mm N/A 51 N·m N/A 258 MPa N/A CAD Icon (for items table)
N/A 16 mm N/A 41 mm N/A 96 N·m N/A 308 MPa N/A CAD Icon (for items table)
N/A 16 mm N/A 41 mm N/A 132 N·m N/A 308 MPa N/A CAD Icon (for items table)
N/A 18 mm N/A 44 mm N/A 121 N·m N/A 274 MPa N/A CAD Icon (for items table)
N/A 18 mm N/A 44 mm N/A 159 N·m N/A 274 MPa N/A CAD Icon (for items table)
N/A 20 mm N/A 47 mm N/A 146 N·m N/A 247 MPa N/A CAD Icon (for items table)
N/A 20 mm N/A 47 mm N/A 186 N·m N/A 247 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 50 mm N/A 172 N·m N/A 235 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 50 mm N/A 218 N·m N/A 235 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 50 mm N/A 267 N·m N/A 235 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 60 mm N/A 297 N·m N/A 205 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 60 mm N/A 352 N·m N/A 205 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 60 mm N/A 412 N·m N/A 205 MPa N/A CAD Icon (for items table)
N/A 36 mm N/A 72 mm N/A 563 N·m N/A 234 MPa N/A CAD Icon (for items table)
N/A 36 mm N/A 72 mm N/A 714 N·m N/A 234 MPa N/A CAD Icon (for items table)
N/A 36 mm N/A 72 mm N/A 722 N·m N/A 234 MPa N/A CAD Icon (for items table)
N/A 44 mm N/A 80 mm N/A 734 N·m N/A 215 MPa N/A CAD Icon (for items table)
N/A 44 mm N/A 80 mm N/A 831 N·m N/A 215 MPa N/A CAD Icon (for items table)
N/A 44 mm N/A 80 mm N/A 933 N·m N/A 215 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 90 mm N/A 1230 N·m N/A 241 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 90 mm N/A 1490 N·m N/A 241 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 90 mm N/A 1760 N·m N/A 241 MPa N/A CAD Icon (for items table)
