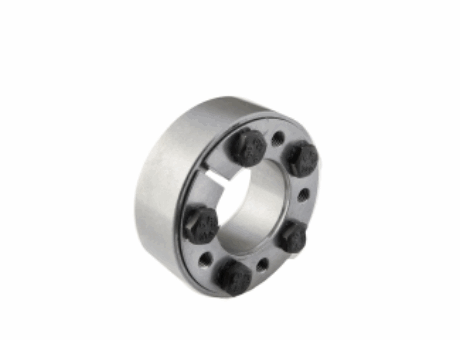

  • Shrink Disc MAV 3009 standard series
External locking device for hollow shaft (hub) - shaft connection - Medium capacity - 2-part design, screws 12.9 - Not self-locking - Tolerances: acc. catalog - Surface finish of shaft and hub 0.8 < Ra < 3.2 μm
1 - 25 of 108 | Results Per Page | View | Unit of Measure
1 2 3 4 5
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 50 mm N/A 90 mm N/A 1.540 N·m N/A 281 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 90 mm N/A 1.820 N·m N/A 281 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 90 mm N/A 2.130 N·m N/A 281 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 100 mm N/A 2.030 N·m N/A 279 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 100 mm N/A 2.520 N·m N/A 279 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 100 mm N/A 3.070 N·m N/A 279 MPa N/A CAD Icon (for items table)
N/A 62 mm N/A 110 mm N/A 2.390 N·m N/A 248 MPa N/A CAD Icon (for items table)
N/A 62 mm N/A 110 mm N/A 2.710 N·m N/A 248 MPa N/A CAD Icon (for items table)
N/A 62 mm N/A 110 mm N/A 2.870 N·m N/A 248 MPa N/A CAD Icon (for items table)
N/A 68 mm N/A 115 mm N/A 2.300 N·m N/A 254 MPa N/A CAD Icon (for items table)
N/A 68 mm N/A 115 mm N/A 3.220 N·m N/A 254 MPa N/A CAD Icon (for items table)
N/A 68 mm N/A 115 mm N/A 4.300 N·m N/A 254 MPa N/A CAD Icon (for items table)
N/A 75 mm N/A 138 mm N/A 3.540 N·m N/A 276 MPa N/A CAD Icon (for items table)
N/A 75 mm N/A 138 mm N/A 4.680 N·m N/A 276 MPa N/A CAD Icon (for items table)
N/A 75 mm N/A 138 mm N/A 5.990 N·m N/A 276 MPa N/A CAD Icon (for items table)
N/A 80 mm N/A 145 mm N/A 4.070 N·m N/A 259 MPa N/A CAD Icon (for items table)
N/A 80 mm N/A 145 mm N/A 5.250 N·m N/A 259 MPa N/A CAD Icon (for items table)
N/A 80 mm N/A 145 mm N/A 6.580 N·m N/A 259 MPa N/A CAD Icon (for items table)
N/A 90 mm N/A 155 mm N/A 6.000 N·m N/A 268 MPa N/A CAD Icon (for items table)
N/A 90 mm N/A 155 mm N/A 7.500 N·m N/A 268 MPa N/A CAD Icon (for items table)
N/A 90 mm N/A 155 mm N/A 9.180 N·m N/A 268 MPa N/A CAD Icon (for items table)
N/A 100 mm N/A 170 mm N/A 8.130 N·m N/A 274 MPa N/A CAD Icon (for items table)
N/A 100 mm N/A 170 mm N/A 9.930 N·m N/A 274 MPa N/A CAD Icon (for items table)
N/A 100 mm N/A 170 mm N/A 11.900 N·m N/A 274 MPa N/A CAD Icon (for items table)
N/A 110 mm N/A 185 mm N/A 11.400 N·m N/A 285 MPa N/A CAD Icon (for items table)
