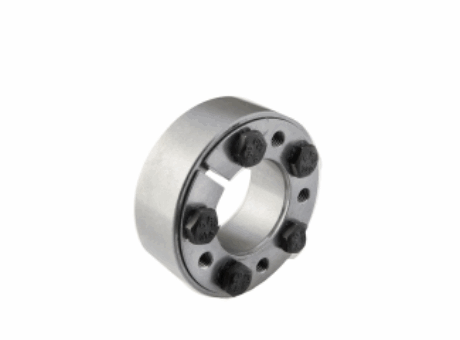

  • Shrink Disc MAV 3108 light series
External locking device for hollow shaft (hub) - shaft connection – Low capacity – 2-part design – Not self-locking – Tolerances: acc. catalog – Surface finish of shaft and hub 0.8 < Ra < 3.2 μm
1 - 25 of 60 | Results Per Page | View | Unit of Measure
1 2 3
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 140 mm N/A 215 mm N/A 15900 N·m N/A 190 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 215 mm N/A 21000 N·m N/A 190 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 215 mm N/A 23400 N·m N/A 190 MPa N/A CAD Icon (for items table)
N/A 155 mm N/A 245 mm N/A 24400 N·m N/A 193 MPa N/A CAD Icon (for items table)
N/A 155 mm N/A 245 mm N/A 27500 N·m N/A 193 MPa N/A CAD Icon (for items table)
N/A 155 mm N/A 245 mm N/A 30700 N·m N/A 193 MPa N/A CAD Icon (for items table)
N/A 165 mm N/A 263 mm N/A 29500 N·m N/A 194 MPa N/A CAD Icon (for items table)
N/A 165 mm N/A 263 mm N/A 32900 N·m N/A 194 MPa N/A CAD Icon (for items table)
N/A 165 mm N/A 263 mm N/A 36600 N·m N/A 194 MPa N/A CAD Icon (for items table)
N/A 175 mm N/A 275 mm N/A 37400 N·m N/A 205 MPa N/A CAD Icon (for items table)
N/A 175 mm N/A 275 mm N/A 41200 N·m N/A 205 MPa N/A CAD Icon (for items table)
N/A 175 mm N/A 275 mm N/A 45300 N·m N/A 205 MPa N/A CAD Icon (for items table)
N/A 185 mm N/A 290 mm N/A 55400 N·m N/A 218 MPa N/A CAD Icon (for items table)
N/A 185 mm N/A 290 mm N/A 60500 N·m N/A 218 MPa N/A CAD Icon (for items table)
N/A 185 mm N/A 290 mm N/A 65800 N·m N/A 218 MPa N/A CAD Icon (for items table)
N/A 195 mm N/A 320 mm N/A 71300 N·m N/A 242 MPa N/A CAD Icon (for items table)
N/A 195 mm N/A 320 mm N/A 77100 N·m N/A 242 MPa N/A CAD Icon (for items table)
N/A 195 mm N/A 320 mm N/A 83300 N·m N/A 242 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 340 mm N/A 90500 N·m N/A 241 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 340 mm N/A 103000 N·m N/A 241 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 340 mm N/A 117000 N·m N/A 241 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 370 mm N/A 102000 N·m N/A 221 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 370 mm N/A 116000 N·m N/A 221 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 370 mm N/A 123000 N·m N/A 221 MPa N/A CAD Icon (for items table)
N/A 260 mm N/A 405 mm N/A 136000 N·m N/A 238 MPa N/A CAD Icon (for items table)
