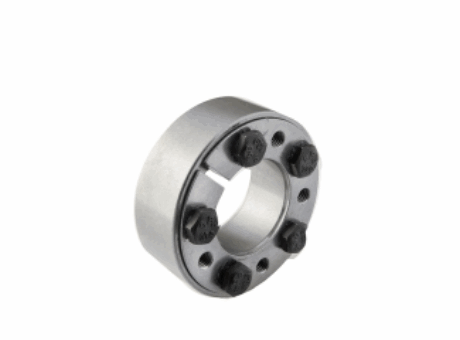

  • Shrink Disc MAV 3209 heavy series
External locking device for hollow shaft (hub) - shaft connection - High capacity - 2-part design, screws 12.9 - Not self-locking - Tolerances: acc. catalog - Surface finish of shaft and hub 0.8 < Ra < 3.2 μm
1 - 25 of 60 | Results Per Page | View | Unit of Measure
1 2 3
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 140 mm N/A 230 mm N/A 26 N·m N/A 273 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 230 mm N/A 30.100 N·m N/A 273 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 230 mm N/A 34.600 N·m N/A 273 MPa N/A CAD Icon (for items table)
N/A 155 mm N/A 263 mm N/A 37.200 N·m N/A 281 MPa N/A CAD Icon (for items table)
N/A 155 mm N/A 263 mm N/A 42.400 N·m N/A 281 MPa N/A CAD Icon (for items table)
N/A 155 mm N/A 263 mm N/A 47.800 N·m N/A 281 MPa N/A CAD Icon (for items table)
N/A 165 mm N/A 290 mm N/A 52.700 N·m N/A 290 MPa N/A CAD Icon (for items table)
N/A 165 mm N/A 290 mm N/A 59.000 N·m N/A 290 MPa N/A CAD Icon (for items table)
N/A 165 mm N/A 290 mm N/A 64.400 N·m N/A 290 MPa N/A CAD Icon (for items table)
N/A 175 mm N/A 300 mm N/A 70.300 N·m N/A 319 MPa N/A CAD Icon (for items table)
N/A 175 mm N/A 300 mm N/A 77.800 N·m N/A 319 MPa N/A CAD Icon (for items table)
N/A 175 mm N/A 300 mm N/A 85.900 N·m N/A 319 MPa N/A CAD Icon (for items table)
N/A 185 mm N/A 320 mm N/A 108 N·m N/A 389 MPa N/A CAD Icon (for items table)
N/A 185 mm N/A 320 mm N/A 118.000 N·m N/A 389 MPa N/A CAD Icon (for items table)
N/A 185 mm N/A 320 mm N/A 129.000 N·m N/A 389 MPa N/A CAD Icon (for items table)
N/A 200 mm N/A 340 mm N/A 125.000 N·m N/A 360 MPa N/A CAD Icon (for items table)
N/A 200 mm N/A 340 mm N/A 136.000 N·m N/A 360 MPa N/A CAD Icon (for items table)
N/A 200 mm N/A 340 mm N/A 147.000 N·m N/A 360 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 370 mm N/A 160 N·m N/A 332 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 370 mm N/A 173.000 N·m N/A 332 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 370 mm N/A 186 N·m N/A 332 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 405 mm N/A 198.000 N·m N/A 317 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 405 mm N/A 227.000 N·m N/A 317 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 405 mm N/A 256.000 N·m N/A 317 MPa N/A CAD Icon (for items table)
N/A 260 mm N/A 430 mm N/A 289.000 N·m N/A 323 MPa N/A CAD Icon (for items table)
