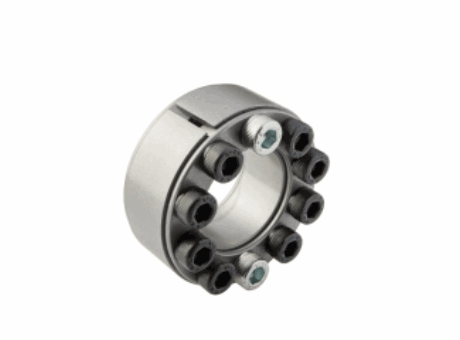

Locking assembly MAV 2005 On Fenner Precision Polymers

Product Catalog & CAD Library

Medium capacity - Not self-centering, self-releasing - Fixed hub position during tightening - Two thrust rings with double taper - Low axial dimension - Tolerances: shaft h11; hub bore H11 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 μm

1 - 25 of 77 | Results Per Page | View | Unit of Measure

1 2 3 4

CAD help Compare Items

Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #	d	D	Torque - Mt	Hub Pressure - Ph	CAD

2005 18x47	N/A 18 mm	N/A 47 mm	N/A 300 N·m	N/A 127 MPa	N/A
2005 19x47	N/A 19 mm	N/A 47 mm	N/A 310 N·m	N/A 127 MPa	N/A
2005 20x47	N/A 20 mm	N/A 47 mm	N/A 330 N·m	N/A 127 MPa	N/A
2005 22x47	N/A 22 mm	N/A 47 mm	N/A 360 N·m	N/A 127 MPa	N/A
2005 24x50	N/A 24 mm	N/A 50 mm	N/A 440 N·m	N/A 134 MPa	N/A
2005 25x50	N/A 25 mm	N/A 50 mm	N/A 460 N·m	N/A 134 MPa	N/A
2005 28x55	N/A 28 mm	N/A 55 mm	N/A 560 N·m	N/A 136 MPa	N/A
2005 30x55	N/A 30 mm	N/A 55 mm	N/A 600 N·m	N/A 136 MPa	N/A
2005 32x60	N/A 32 mm	N/A 60 mm	N/A 770 N·m	N/A 149 MPa	N/A
2005 35x60	N/A 35 mm	N/A 60 mm	N/A 830 N·m	N/A 149 MPa	N/A
2005 38x65	N/A 38 mm	N/A 65 mm	N/A 1050 N·m	N/A 161 MPa	N/A
2005 40x65	N/A 40 mm	N/A 65 mm	N/A 1100 N·m	N/A 161 MPa	N/A
2005 42x75	N/A 42 mm	N/A 75 mm	N/A 1830 N·m	N/A 188 MPa	N/A
2005 45x75	N/A 45 mm	N/A 75 mm	N/A 1950 N·m	N/A 188 MPa	N/A
2005 48x80	N/A 48 mm	N/A 80 mm	N/A 2080 N·m	N/A 176 MPa	N/A
2005 50x80	N/A 50 mm	N/A 80 mm	N/A 2160 N·m	N/A 176 MPa	N/A
2005 55x85	N/A 55 mm	N/A 85 mm	N/A 2750 N·m	N/A 194 MPa	N/A
2005 60x90	N/A 60 mm	N/A 90 mm	N/A 2990 N·m	N/A 183 MPa	N/A
2005 63x95	N/A 63 mm	N/A 95 mm	N/A 3570 N·m	N/A 198 MPa	N/A
2005 65x95	N/A 65 mm	N/A 95 mm	N/A 3680 N·m	N/A 198 MPa	N/A
2005 70x110	N/A 70 mm	N/A 110 mm	N/A 5650 N·m	N/A 204 MPa	N/A
2005 75x115	N/A 75 mm	N/A 115 mm	N/A 6030 N·m	N/A 196 MPa	N/A
2005 80x120	N/A 80 mm	N/A 120 mm	N/A 6410 N·m	N/A 187 MPa	N/A
2005 85x125	N/A 85 mm	N/A 125 mm	N/A 7750 N·m	N/A 206 MPa	N/A
2005 90x130	N/A 90 mm	N/A 130 mm	N/A 8180 N·m	N/A 198 MPa	N/A
