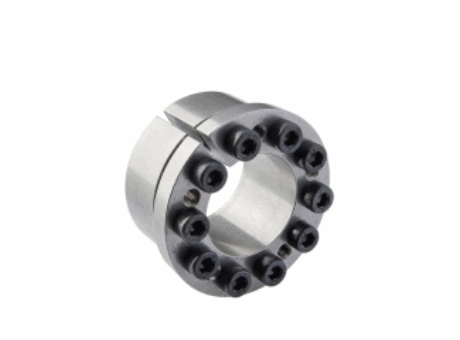

  • Locking assembly MAV 2061
Medium-high capacity - Self-centering, self-locking - Fixed hub position during tightening - Single taper design - Tolerances: shaft h7-h11; hub bore H7-H11 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 21 of 21 | Results Per Page | View | Unit of Measure
1
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 6 mm N/A 22 mm N/A 22 N·m N/A 88 MPa N/A CAD Icon (for items table)
N/A 7 mm N/A 22 mm N/A 26 N·m N/A 88 MPa N/A CAD Icon (for items table)
N/A 8 mm N/A 22 mm N/A 29 N·m N/A 88 MPa N/A CAD Icon (for items table)
N/A 9 mm N/A 25 mm N/A 33 N·m N/A 77 MPa N/A CAD Icon (for items table)
N/A 10 mm N/A 25 mm N/A 37 N·m N/A 77 MPa N/A CAD Icon (for items table)
N/A 11 mm N/A 27 mm N/A 54 N·m N/A 96 MPa N/A CAD Icon (for items table)
N/A 12 mm N/A 27 mm N/A 58 N·m N/A 96 MPa N/A CAD Icon (for items table)
N/A 14 mm N/A 30 mm N/A 102 N·m N/A 108 MPa N/A CAD Icon (for items table)
N/A 15 mm N/A 30 mm N/A 110 N·m N/A 108 MPa N/A CAD Icon (for items table)
N/A 16 mm N/A 30 mm N/A 117 N·m N/A 108 MPa N/A CAD Icon (for items table)
N/A 17 mm N/A 34 mm N/A 124 N·m N/A 95 MPa N/A CAD Icon (for items table)
N/A 18 mm N/A 34 mm N/A 131 N·m N/A 95 MPa N/A CAD Icon (for items table)
N/A 19 mm N/A 34 mm N/A 139 N·m N/A 95 MPa N/A CAD Icon (for items table)
N/A 20 mm N/A 40 mm N/A 235 N·m N/A 104 MPa N/A CAD Icon (for items table)
N/A 22 mm N/A 40 mm N/A 258 N·m N/A 104 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 43 mm N/A 375 N·m N/A 129 MPa N/A CAD Icon (for items table)
N/A 25 mm N/A 43 mm N/A 391 N·m N/A 129 MPa N/A CAD Icon (for items table)
N/A 28 mm N/A 50 mm N/A 547 N·m N/A 122 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 50 mm N/A 586 N·m N/A 122 MPa N/A CAD Icon (for items table)
N/A 32 mm N/A 55 mm N/A 625 N·m N/A 111 MPa N/A CAD Icon (for items table)
N/A 35 mm N/A 55 mm N/A 684 N·m N/A 111 MPa N/A CAD Icon (for items table)
