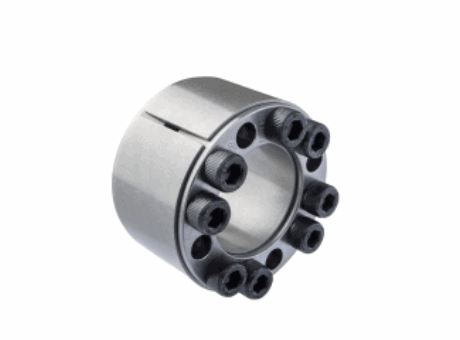

  • Locking assembly MAV 2500
Medium-high capacity - Self-centering, self-locking - Fixed hub position during tightening - Two thrust rings with double taper - Tolerances: shaft h9; hub bore H9 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 24 of 24 | Results Per Page | View | Unit of Measure
1
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 45 mm N/A 85 mm N/A 3000 N·m N/A 122 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 90 mm N/A 3300 N·m N/A 116 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 95 mm N/A 3700 N·m N/A 110 MPa N/A CAD Icon (for items table)
N/A 60 mm N/A 100 mm N/A 4000 N·m N/A 104 MPa N/A CAD Icon (for items table)
N/A 65 mm N/A 115 mm N/A 6300 N·m N/A 113 MPa N/A CAD Icon (for items table)
N/A 70 mm N/A 120 mm N/A 6800 N·m N/A 108 MPa N/A CAD Icon (for items table)
N/A 80 mm N/A 130 mm N/A 11500 N·m N/A 149 MPa N/A CAD Icon (for items table)
N/A 90 mm N/A 140 mm N/A 12900 N·m N/A 139 MPa N/A CAD Icon (for items table)
N/A 100 mm N/A 160 mm N/A 19400 N·m N/A 125 MPa N/A CAD Icon (for items table)
N/A 110 mm N/A 170 mm N/A 24700 N·m N/A 138 MPa N/A CAD Icon (for items table)
N/A 120 mm N/A 180 mm N/A 28700 N·m N/A 139 MPa N/A CAD Icon (for items table)
N/A 130 mm N/A 190 mm N/A 31000 N·m N/A 132 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 200 mm N/A 37600 N·m N/A 142 MPa N/A CAD Icon (for items table)
N/A 150 mm N/A 210 mm N/A 42500 N·m N/A 143 MPa N/A CAD Icon (for items table)
N/A 160 mm N/A 230 mm N/A 58500 N·m N/A 140 MPa N/A CAD Icon (for items table)
N/A 170 mm N/A 240 mm N/A 65600 N·m N/A 142 MPa N/A CAD Icon (for items table)
N/A 180 mm N/A 250 mm N/A 76900 N·m N/A 151 MPa N/A CAD Icon (for items table)
N/A 190 mm N/A 260 mm N/A 84900 N·m N/A 153 MPa N/A CAD Icon (for items table)
N/A 200 mm N/A 270 mm N/A 97600 N·m N/A 161 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 300 mm N/A 117000 N·m N/A 133 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 320 mm N/A 145000 N·m N/A 142 MPa N/A CAD Icon (for items table)
N/A 260 mm N/A 340 mm N/A 170000 N·m N/A 145 MPa N/A CAD Icon (for items table)
N/A 280 mm N/A 370 mm N/A 217000 N·m N/A 143 MPa N/A CAD Icon (for items table)
N/A 300 mm N/A 390 mm N/A 231000 N·m N/A 131 MPa N/A CAD Icon (for items table)
