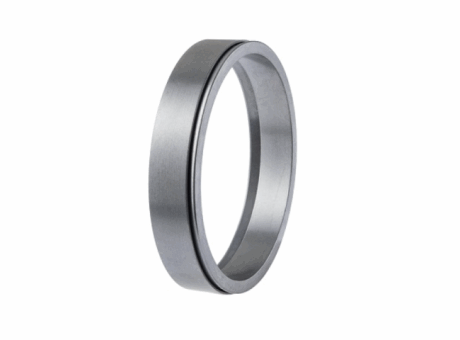

Locking assembly MAV 3003 On Fenner Precision Polymers

Product Catalog & CAD Library

Low capacity - Not self-centering, self-releasing - Small overall dimensions - Thrust ring not supplied - Tolerances: (d ≤ 38mm) shaft h6; hub bore H7; (d > 38mm) shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.4 < Ra < 0.8 µm

1 - 25 of 71 | Results Per Page | View | Unit of Measure

1 2 3

CAD help Compare Items

Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #	d	D	Torque - Mt	Hub Pressure - Ph	CAD

3003 6x9	N/A 6 mm	N/A 9 mm	N/A 3 N·m	N/A 80 MPa	N/A
3003 7x10	N/A 7 mm	N/A 10 mm	N/A 4 N·m	N/A 84 MPa	N/A
3003 8x11	N/A 8 mm	N/A 11 mm	N/A 5 N·m	N/A 87 MPa	N/A
3003 9x12	N/A 9 mm	N/A 12 mm	N/A 7 N·m	N/A 90 MPa	N/A
3003 10x13	N/A 10 mm	N/A 13 mm	N/A 8 N·m	N/A 92 MPa	N/A
3003 12x15	N/A 12 mm	N/A 15 mm	N/A 12 N·m	N/A 96 MPa	N/A
3003 13x16	N/A 13 mm	N/A 16 mm	N/A 14 N·m	N/A 98 MPa	N/A
3003 14x18	N/A 14 mm	N/A 18 mm	N/A 23 N·m	N/A 93 MPa	N/A
3003 15x19	N/A 15 mm	N/A 19 mm	N/A 27 N·m	N/A 95 MPa	N/A
3003 16x20	N/A 16 mm	N/A 20 mm	N/A 31 N·m	N/A 96 MPa	N/A
3003 17x21	N/A 17 mm	N/A 21 mm	N/A 35 N·m	N/A 97 MPa	N/A
3003 18x22	N/A 18 mm	N/A 22 mm	N/A 39 N·m	N/A 98 MPa	N/A
3003 19x24	N/A 19 mm	N/A 24 mm	N/A 43 N·m	N/A 95 MPa	N/A
3003 20x25	N/A 20 mm	N/A 25 mm	N/A 48 N·m	N/A 96 MPa	N/A
3003 22x26	N/A 22 mm	N/A 26 mm	N/A 58 N·m	N/A 102 MPa	N/A
3003 24x28	N/A 24 mm	N/A 28 mm	N/A 69 N·m	N/A 103 MPa	N/A
3003 25x30	N/A 25 mm	N/A 30 mm	N/A 75 N·m	N/A 100 MPa	N/A
3003 28x32	N/A 28 mm	N/A 32 mm	N/A 94 N·m	N/A 105 MPa	N/A
3003 30x35	N/A 30 mm	N/A 35 mm	N/A 108 N·m	N/A 103 MPa	N/A
3003 32x36	N/A 32 mm	N/A 36 mm	N/A 123 N·m	N/A 107 MPa	N/A
3003 35x40	N/A 35 mm	N/A 40 mm	N/A 170 N·m	N/A 105 MPa	N/A
3003 36x42	N/A 36 mm	N/A 42 mm	N/A 180 N·m	N/A 103 MPa	N/A
3003 38x44	N/A 38 mm	N/A 44 mm	N/A 200 N·m	N/A 104 MPa	N/A
3003 40x45	N/A 40 mm	N/A 45 mm	N/A 240 N·m	N/A 107 MPa	N/A
3003 42x48	N/A 42 mm	N/A 48 mm	N/A 260 N·m	N/A 105 MPa	N/A
