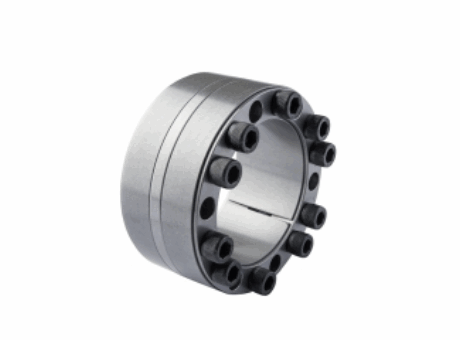

  • Locking assembly MAV 4071
Medium-high capacity - Self-centering, self-locking - Fixed hub position during tightening - Two thrust rings with double taper - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 25 of 31 | Results Per Page | View | Unit of Measure
1 2
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 100 mm N/A 145 mm N/A 14400 N·m N/A 132 MPa N/A CAD Icon (for items table)
N/A 110 mm N/A 155 mm N/A 15800 N·m N/A 123 MPa N/A CAD Icon (for items table)
N/A 120 mm N/A 165 mm N/A 20700 N·m N/A 139 MPa N/A CAD Icon (for items table)
N/A 130 mm N/A 180 mm N/A 28100 N·m N/A 142 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 190 mm N/A 36300 N·m N/A 161 MPa N/A CAD Icon (for items table)
N/A 150 mm N/A 200 mm N/A 38900 N·m N/A 154 MPa N/A CAD Icon (for items table)
N/A 160 mm N/A 210 mm N/A 48400 N·m N/A 171 MPa N/A CAD Icon (for items table)
N/A 170 mm N/A 225 mm N/A 60100 N·m N/A 165 MPa N/A CAD Icon (for items table)
N/A 180 mm N/A 235 mm N/A 63600 N·m N/A 159 MPa N/A CAD Icon (for items table)
N/A 190 mm N/A 250 mm N/A 74600 N·m N/A 141 MPa N/A CAD Icon (for items table)
N/A 200 mm N/A 260 mm N/A 94300 N·m N/A 162 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 285 mm N/A 109000 N·m N/A 137 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 305 mm N/A 158000 N·m N/A 170 MPa N/A CAD Icon (for items table)
N/A 260 mm N/A 325 mm N/A 178000 N·m N/A 166 MPa N/A CAD Icon (for items table)
N/A 280 mm N/A 355 mm N/A 223000 N·m N/A 145 MPa N/A CAD Icon (for items table)
N/A 300 mm N/A 375 mm N/A 249000 N·m N/A 143 MPa N/A CAD Icon (for items table)
N/A 320 mm N/A 405 mm N/A 344000 N·m N/A 157 MPa N/A CAD Icon (for items table)
N/A 340 mm N/A 425 mm N/A 365000 N·m N/A 150 MPa N/A CAD Icon (for items table)
N/A 360 mm N/A 455 mm N/A 480000 N·m N/A 138 MPa N/A CAD Icon (for items table)
N/A 380 mm N/A 475 mm N/A 506000 N·m N/A 132 MPa N/A CAD Icon (for items table)
N/A 400 mm N/A 495 mm N/A 533000 N·m N/A 127 MPa N/A CAD Icon (for items table)
N/A 420 mm N/A 515 mm N/A 672000 N·m N/A 146 MPa N/A CAD Icon (for items table)
N/A 440 mm N/A 545 mm N/A 818000 N·m N/A 150 MPa N/A CAD Icon (for items table)
N/A 460 mm N/A 565 mm N/A 855000 N·m N/A 145 MPa N/A CAD Icon (for items table)
N/A 480 mm N/A 585 mm N/A 951000 N·m N/A 149 MPa N/A CAD Icon (for items table)
