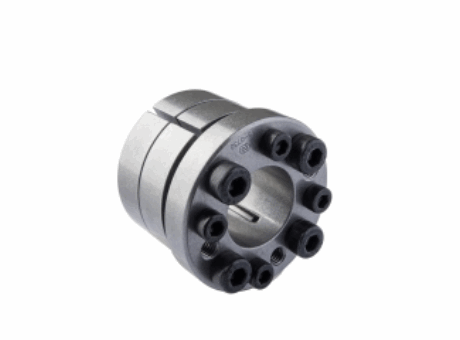

  • Locking assembly MAV 6002
High capacity - Self-centering, self-locking - Fixed hub position during tightening - Single taper design with two outer rings - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 25 of 49 | Results Per Page | View | Unit of Measure
1 2
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque 1 - Mt 1 (N·m)

Torque 2 - Mt 2 (N·m)

Hub Pressure 1 - Ph 1 (MPa)

Hub Pressure 2 - Ph 2 (MPa)

Item #

d

D

Torque 1 - Mt 1

Torque 2 - Mt 2

Hub Pressure 1 - Ph 1

Hub Pressure 2 - Ph 2

CAD

N/A 30 mm N/A 60 mm N/A 620 N·m N/A 330 N·m N/A 121 MPa N/A 66 MPa N/A CAD Icon (for items table)
N/A 32 mm N/A 65 mm N/A 660 N·m N/A 450 N·m N/A 112 MPa N/A 76 MPa N/A CAD Icon (for items table)
N/A 35 mm N/A 65 mm N/A 720 N·m N/A 490 N·m N/A 112 MPa N/A 76 MPa N/A CAD Icon (for items table)
N/A 38 mm N/A 70 mm N/A 980 N·m N/A 530 N·m N/A 130 MPa N/A 70 MPa N/A CAD Icon (for items table)
N/A 40 mm N/A 70 mm N/A 1030 N·m N/A 560 N·m N/A 130 MPa N/A 70 MPa N/A CAD Icon (for items table)
N/A 42 mm N/A 80 mm N/A 1420 N·m N/A 1080 N·m N/A 124 MPa N/A 95 MPa N/A CAD Icon (for items table)
N/A 45 mm N/A 80 mm N/A 1520 N·m N/A 1160 N·m N/A 124 MPa N/A 95 MPa N/A CAD Icon (for items table)
N/A 48 mm N/A 85 mm N/A 2030 N·m N/A 1230 N·m N/A 146 MPa N/A 89 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 85 mm N/A 2110 N·m N/A 1290 N·m N/A 146 MPa N/A 89 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 90 mm N/A 2320 N·m N/A 1410 N·m N/A 138 MPa N/A 84 MPa N/A CAD Icon (for items table)
N/A 60 mm N/A 95 mm N/A 3040 N·m N/A 1850 N·m N/A 157 MPa N/A 96 MPa N/A CAD Icon (for items table)
N/A 65 mm N/A 100 mm N/A 3290 N·m N/A 2010 N·m N/A 149 MPa N/A 91 MPa N/A CAD Icon (for items table)
N/A 70 mm N/A 115 mm N/A 5300 N·m N/A 3550 N·m N/A 145 MPa N/A 97 MPa N/A CAD Icon (for items table)
N/A 75 mm N/A 125 mm N/A 6620 N·m N/A 4430 N·m N/A 156 MPa N/A 105 MPa N/A CAD Icon (for items table)
N/A 80 mm N/A 125 mm N/A 7060 N·m N/A 4730 N·m N/A 156 MPa N/A 105 MPa N/A CAD Icon (for items table)
N/A 85 mm N/A 135 mm N/A 7500 N·m N/A 5020 N·m N/A 145 MPa N/A 97 MPa N/A CAD Icon (for items table)
N/A 90 mm N/A 135 mm N/A 7950 N·m N/A 5320 N·m N/A 145 MPa N/A 97 MPa N/A CAD Icon (for items table)
N/A 95 mm N/A 150 mm N/A 11300 N·m N/A 8390 N·m N/A 162 MPa N/A 120 MPa N/A CAD Icon (for items table)
N/A 100 mm N/A 150 mm N/A 11900 N·m N/A 8830 N·m N/A 162 MPa N/A 120 MPa N/A CAD Icon (for items table)
N/A 110 mm N/A 160 mm N/A 13100 N·m N/A 9710 N·m N/A 151 MPa N/A 113 MPa N/A CAD Icon (for items table)
N/A 120 mm N/A 170 mm N/A 14300 N·m N/A 10600 N·m N/A 143 MPa N/A 106 MPa N/A CAD Icon (for items table)
N/A 130 mm N/A 190 mm N/A 24200 N·m N/A 17600 N·m N/A 173 MPa N/A 126 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 200 mm N/A 26000 N·m N/A 19000 N·m N/A 164 MPa N/A 120 MPa N/A CAD Icon (for items table)
N/A 150 mm N/A 210 mm N/A 27900 N·m N/A 20400 N·m N/A 157 MPa N/A 114 MPa N/A CAD Icon (for items table)
N/A 160 mm N/A 220 mm N/A 29700 N·m N/A 21700 N·m N/A 149 MPa N/A 109 MPa N/A CAD Icon (for items table)
