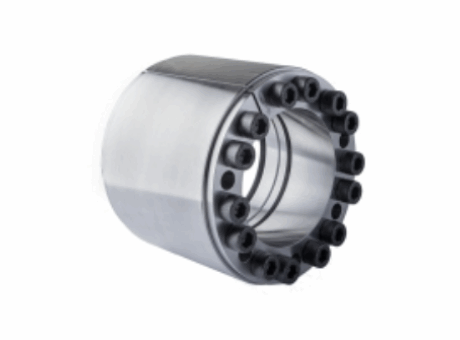

  • Locking assembly MAV 6061
Very high capacity - Self-centering, self-locking - Two thrust rings with single taper design - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 22 of 22 | Results Per Page | View | Unit of Measure
1
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 180 mm N/A 285 mm N/A 226800 N·m N/A 141 MPa N/A CAD Icon (for items table)
N/A 200 mm N/A 305 mm N/A 288000 N·m N/A 151 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 325 mm N/A 316700 N·m N/A 143 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 355 mm N/A 406400 N·m N/A 149 MPa N/A CAD Icon (for items table)
N/A 260 mm N/A 375 mm N/A 495300 N·m N/A 159 MPa N/A CAD Icon (for items table)
N/A 280 mm N/A 405 mm N/A 592700 N·m N/A 165 MPa N/A CAD Icon (for items table)
N/A 300 mm N/A 425 mm N/A 635100 N·m N/A 155 MPa N/A CAD Icon (for items table)
N/A 320 mm N/A 455 mm N/A 817800 N·m N/A 151 MPa N/A CAD Icon (for items table)
N/A 340 mm N/A 475 mm N/A 965500 N·m N/A 159 MPa N/A CAD Icon (for items table)
N/A 360 mm N/A 495 mm N/A 1124000 N·m N/A 167 MPa N/A CAD Icon (for items table)
N/A 380 mm N/A 515 mm N/A 1187000 N·m N/A 163 MPa N/A CAD Icon (for items table)
N/A 400 mm N/A 535 mm N/A 1249000 N·m N/A 157 MPa N/A CAD Icon (for items table)
N/A 420 mm N/A 555 mm N/A 1431000 N·m N/A 163 MPa N/A CAD Icon (for items table)
N/A 440 mm N/A 575 mm N/A 1499000 N·m N/A 157 MPa N/A CAD Icon (for items table)
N/A 460 mm N/A 595 mm N/A 1567000 N·m N/A 152 MPa N/A CAD Icon (for items table)
N/A 480 mm N/A 615 mm N/A 1908000 N·m N/A 174 MPa N/A CAD Icon (for items table)
N/A 500 mm N/A 635 mm N/A 1987000 N·m N/A 173 MPa N/A CAD Icon (for items table)
N/A 520 mm N/A 655 mm N/A 2067000 N·m N/A 163 MPa N/A CAD Icon (for items table)
N/A 540 mm N/A 675 mm N/A 2300000 N·m N/A 170 MPa N/A CAD Icon (for items table)
N/A 560 mm N/A 695 mm N/A 2385000 N·m N/A 165 MPa N/A CAD Icon (for items table)
N/A 580 mm N/A 715 mm N/A 2470000 N·m N/A 160 MPa N/A CAD Icon (for items table)
N/A 600 mm N/A 735 mm N/A 2726000 N·m N/A 166 MPa N/A CAD Icon (for items table)
