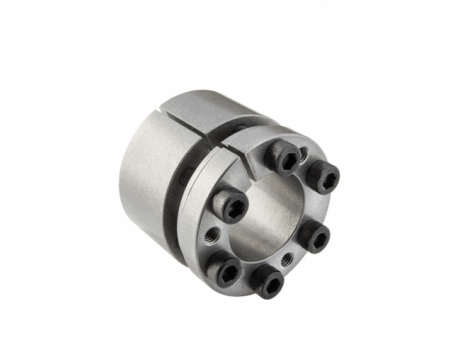

  • Locking assembly MAV 6901
Medium capacity - Self-centering, self-locking - Single taper design - Low contact pressures - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 25 of 47 | Results Per Page | View | Unit of Measure
1 2
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 18 mm N/A 47 mm N/A 510 N·m N/A 123 MPa N/A CAD Icon (for items table)
N/A 19 mm N/A 47 mm N/A 540 N·m N/A 123 MPa N/A CAD Icon (for items table)
N/A 20 mm N/A 47 mm N/A 570 N·m N/A 123 MPa N/A CAD Icon (for items table)
N/A 22 mm N/A 47 mm N/A 620 N·m N/A 123 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 50 mm N/A 680 N·m N/A 116 MPa N/A CAD Icon (for items table)
N/A 25 mm N/A 50 mm N/A 710 N·m N/A 116 MPa N/A CAD Icon (for items table)
N/A 28 mm N/A 55 mm N/A 790 N·m N/A 105 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 55 mm N/A 850 N·m N/A 105 MPa N/A CAD Icon (for items table)
N/A 32 mm N/A 60 mm N/A 1200 N·m N/A 129 MPa N/A CAD Icon (for items table)
N/A 35 mm N/A 60 mm N/A 1300 N·m N/A 129 MPa N/A CAD Icon (for items table)
N/A 38 mm N/A 65 mm N/A 1400 N·m N/A 119 MPa N/A CAD Icon (for items table)
N/A 40 mm N/A 65 mm N/A 1500 N·m N/A 119 MPa N/A CAD Icon (for items table)
N/A 42 mm N/A 75 mm N/A 2200 N·m N/A 124 MPa N/A CAD Icon (for items table)
N/A 45 mm N/A 75 mm N/A 2400 N·m N/A 124 MPa N/A CAD Icon (for items table)
N/A 48 mm N/A 80 mm N/A 2500 N·m N/A 116 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 80 mm N/A 2600 N·m N/A 116 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 85 mm N/A 3800 N·m N/A 145 MPa N/A CAD Icon (for items table)
N/A 60 mm N/A 90 mm N/A 4200 N·m N/A 137 MPa N/A CAD Icon (for items table)
N/A 63 mm N/A 95 mm N/A 4400 N·m N/A 130 MPa N/A CAD Icon (for items table)
N/A 65 mm N/A 95 mm N/A 4500 N·m N/A 130 MPa N/A CAD Icon (for items table)
N/A 70 mm N/A 110 mm N/A 7000 N·m N/A 121 MPa N/A CAD Icon (for items table)
N/A 75 mm N/A 115 mm N/A 7500 N·m N/A 116 MPa N/A CAD Icon (for items table)
N/A 80 mm N/A 120 mm N/A 8000 N·m N/A 111 MPa N/A CAD Icon (for items table)
N/A 85 mm N/A 125 mm N/A 9800 N·m N/A 122 MPa N/A CAD Icon (for items table)
N/A 90 mm N/A 130 mm N/A 10300 N·m N/A 117 MPa N/A CAD Icon (for items table)
