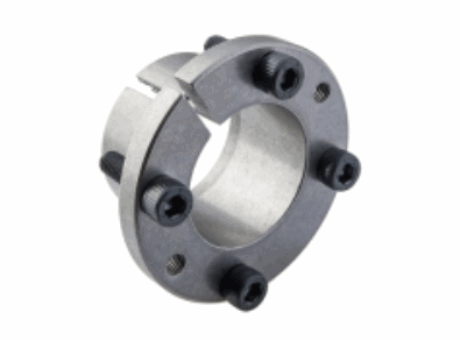

  • Locking assembly MAV 7107
Low capacity - Self-centering, Self-locking - Axial fixation of hub during tightening: yes / no - Single taper design - Low contact pressures - Tolerances: shaft h8; hub bore H8 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm
1 - 22 of 22 | Results Per Page | View | Unit of Measure
1
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 14 mm N/A 25 mm N/A 68 N·m N/A 65 MPa N/A CAD Icon (for items table)
N/A 16 mm N/A 25 mm N/A 78 N·m N/A 65 MPa N/A CAD Icon (for items table)
N/A 18 mm N/A 25 mm N/A 88 N·m N/A 65 MPa N/A CAD Icon (for items table)
N/A 19 mm N/A 25 mm N/A 92 N·m N/A 65 MPa N/A CAD Icon (for items table)
N/A 20 mm N/A 30 mm N/A 160 N·m N/A 88 MPa N/A CAD Icon (for items table)
N/A 22 mm N/A 30 mm N/A 180 N·m N/A 88 MPa N/A CAD Icon (for items table)
N/A 24 mm N/A 30 mm N/A 190 N·m N/A 88 MPa N/A CAD Icon (for items table)
N/A 25 mm N/A 36 mm N/A 200 N·m N/A 73 MPa N/A CAD Icon (for items table)
N/A 28 mm N/A 36 mm N/A 220 N·m N/A 73 MPa N/A CAD Icon (for items table)
N/A 30 mm N/A 36 mm N/A 240 N·m N/A 73 MPa N/A CAD Icon (for items table)
N/A 32 mm N/A 42 mm N/A 250 N·m N/A 63 MPa N/A CAD Icon (for items table)
N/A 35 mm N/A 42 mm N/A 280 N·m N/A 63 MPa N/A CAD Icon (for items table)
N/A 36 mm N/A 42 mm N/A 290 N·m N/A 63 MPa N/A CAD Icon (for items table)
N/A 38 mm N/A 44 mm N/A 420 N·m N/A 84 MPa N/A CAD Icon (for items table)
N/A 40 mm N/A 48 mm N/A 450 N·m N/A 77 MPa N/A CAD Icon (for items table)
N/A 42 mm N/A 48 mm N/A 470 N·m N/A 77 MPa N/A CAD Icon (for items table)
N/A 45 mm N/A 55 mm N/A 930 N·m N/A 99 MPa N/A CAD Icon (for items table)
N/A 48 mm N/A 55 mm N/A 990 N·m N/A 99 MPa N/A CAD Icon (for items table)
N/A 50 mm N/A 62 mm N/A 1000 N·m N/A 88 MPa N/A CAD Icon (for items table)
N/A 55 mm N/A 62 mm N/A 1100 N·m N/A 88 MPa N/A CAD Icon (for items table)
N/A 60 mm N/A 72 mm N/A 1200 N·m N/A 76 MPa N/A CAD Icon (for items table)
N/A 65 mm N/A 72 mm N/A 1300 N·m N/A 76 MPa N/A CAD Icon (for items table)
