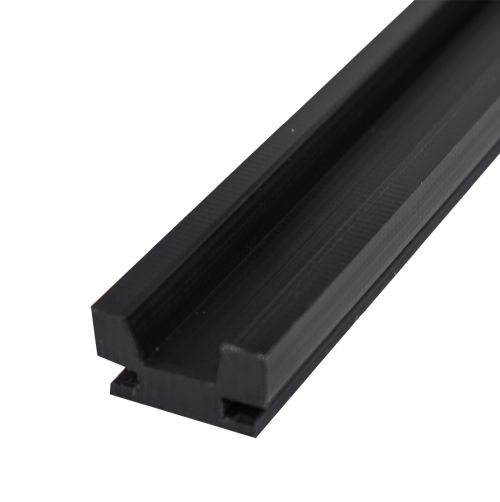

  • Trackstar V Belt Guides
  • Trackstar V Belt Guides - dim
1 - 15 of 15 | Results Per Page | View | Unit of Measure
1
CAD help Compare Items
Clear Filter

Belt Cross Section

Part Number

Belt Cross Section

Material

Channel Type

A

B

D

H

N/A 6x4, 8x5, 10x4 mm, Z/10, 3L N/A Galvanized N/A C3 N/A 0.59 in N/A 0.79 in N/A 0.80 in N/A 0.16 in
N/A A N/A Galvanized N/A C3 N/A 0.59 in N/A 0.79 in N/A 0.80 in N/A 0.2 in
N/A A Twin N/A Galvanized N/A C5 N/A 0.59 in N/A 1.42 in N/A 0.84 in N/A 0.2 in
N/A B N/A Galvanized N/A C5 N/A 0.59 in N/A 1.10 in N/A 0.84 in N/A 0.29 in
N/A C N/A Galvanized N/A C5 N/A 0.71 in N/A 1.10 in N/A 0.96 in N/A 0.4 in
N/A 6x4, 8x5, 10x4 mm, Z/10, 3L N/A Stainless Steel N/A C3 N/A 0.59 in N/A 0.79 in N/A 0.80 in N/A 0.16 in
N/A A N/A Stainless Steel N/A C3 N/A 0.59 in N/A 0.79 in N/A 0.80 in N/A 0.2 in
N/A A Twin N/A Stainless Steel N/A C5 N/A 0.59 in N/A 1.42 in N/A 0.84 in N/A 0.2 in
N/A B N/A Stainless Steel N/A C5 N/A 0.59 in N/A 1.10 in N/A 0.84 in N/A 0.29 in
N/A C N/A Stainless Steel N/A C5 N/A 0.71 in N/A 1.10 in N/A 0.96 in N/A 0.4 in
N/A 6x4, 8x5, 10x4 mm, Z/10, 3L N/A UHMW N/A C3 N/A 0.59 in N/A 0.79 in N/A 0.80 in N/A 0.16 in
N/A A N/A UHMW N/A C3 N/A 0.59 in N/A 0.79 in N/A 0.80 in N/A 0.2 in
N/A A Twin N/A UHMW N/A C5 N/A 0.59 in N/A 1.42 in N/A 0.84 in N/A 0.2 in
N/A B N/A UHMW N/A C5 N/A 0.59 in N/A 1.10 in N/A 0.84 in N/A 0.29 in
N/A C N/A UHMW N/A C5 N/A 0.71 in N/A 1.10 in N/A 0.96 in N/A 0.4 in
