External locking device for hollow shaft (hub) - shaft connection – Low capacity – 3-part design – Not self-locking – Tolerances: acc. catalog – Surface finish of shaft and hub 0.8 < Ra < 3.2 μm
Unit of Measure

Technical Specs

Ma

 N/A 100 N·m

Torque - Mt

 N/A 73900 N·m

Hub Pressure - Ph

 N/A 229 MPa

Ps

 N/A 206 MPa

Fax

 N/A 900 kN

Weight

 N/A 24 kg

Locking Screws

Size

 N/A M12

Dimensions

d

 N/A 195 mm

D

 N/A 315 mm

L

 N/A 79.5 mm

L1

 N/A 72 mm

ds

 N/A 165 mm

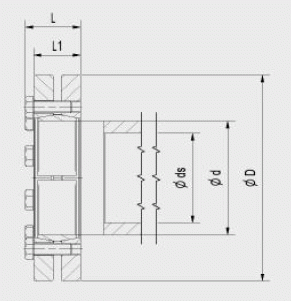

Dimensional Drawing


Shrink Disc MAV 2108 light series - dim
