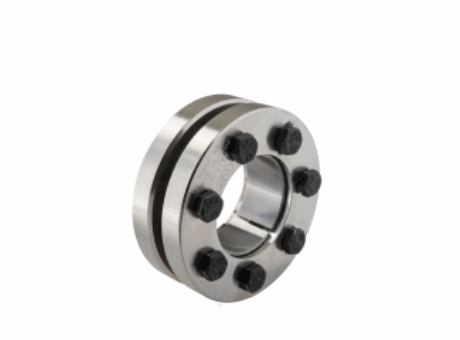

  • Shrink Disc MAV 2108 light series
External locking device for hollow shaft (hub) - shaft connection – Low capacity – 3-part design – Not self-locking – Tolerances: acc. catalog – Surface finish of shaft and hub 0.8 < Ra < 3.2 μm
1 - 25 of 60 | Results Per Page | View | Unit of Measure
1 2 3
CAD help Compare Items
Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #

d

D

Torque - Mt

Hub Pressure - Ph

CAD

N/A 125 mm N/A 190 mm N/A 11000 N·m N/A 184 MPa N/A CAD Icon (for items table)
N/A 125 mm N/A 190 mm N/A 13200 N·m N/A 184 MPa N/A CAD Icon (for items table)
N/A 125 mm N/A 190 mm N/A 15600 N·m N/A 184 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 220 mm N/A 18600 N·m N/A 206 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 220 mm N/A 24200 N·m N/A 206 MPa N/A CAD Icon (for items table)
N/A 140 mm N/A 220 mm N/A 27000 N·m N/A 206 MPa N/A CAD Icon (for items table)
N/A 155 mm N/A 245 mm N/A 30500 N·m N/A 223 MPa N/A CAD Icon (for items table)
N/A 155 mm N/A 245 mm N/A 34100 N·m N/A 223 MPa N/A CAD Icon (for items table)
N/A 155 mm N/A 245 mm N/A 37800 N·m N/A 223 MPa N/A CAD Icon (for items table)
N/A 165 mm N/A 260 mm N/A 36800 N·m N/A 220 MPa N/A CAD Icon (for items table)
N/A 165 mm N/A 260 mm N/A 40900 N·m N/A 220 MPa N/A CAD Icon (for items table)
N/A 165 mm N/A 260 mm N/A 45200 N·m N/A 220 MPa N/A CAD Icon (for items table)
N/A 175 mm N/A 275 mm N/A 40500 N·m N/A 207 MPa N/A CAD Icon (for items table)
N/A 175 mm N/A 275 mm N/A 44700 N·m N/A 207 MPa N/A CAD Icon (for items table)
N/A 175 mm N/A 275 mm N/A 49000 N·m N/A 207 MPa N/A CAD Icon (for items table)
N/A 185 mm N/A 295 mm N/A 54400 N·m N/A 235 MPa N/A CAD Icon (for items table)
N/A 185 mm N/A 295 mm N/A 59300 N·m N/A 235 MPa N/A CAD Icon (for items table)
N/A 185 mm N/A 295 mm N/A 64500 N·m N/A 235 MPa N/A CAD Icon (for items table)
N/A 195 mm N/A 315 mm N/A 73900 N·m N/A 229 MPa N/A CAD Icon (for items table)
N/A 195 mm N/A 315 mm N/A 80100 N·m N/A 229 MPa N/A CAD Icon (for items table)
N/A 195 mm N/A 315 mm N/A 86500 N·m N/A 229 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 345 mm N/A 98600 N·m N/A 221 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 345 mm N/A 113000 N·m N/A 221 MPa N/A CAD Icon (for items table)
N/A 220 mm N/A 345 mm N/A 129000 N·m N/A 221 MPa N/A CAD Icon (for items table)
N/A 240 mm N/A 370 mm N/A 137000 N·m N/A 243 MPa N/A CAD Icon (for items table)
