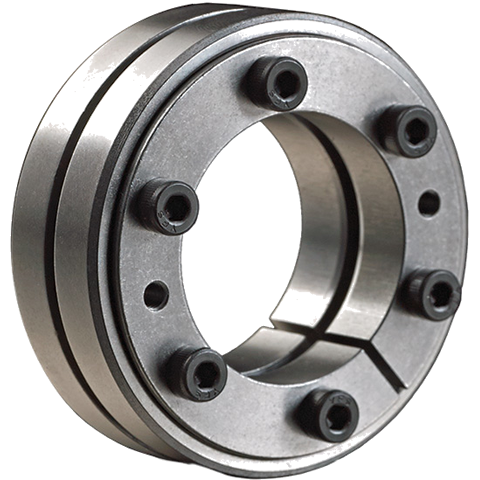

BCH20 – Light Duty – Inch On Fenner Precision Polymers

Product Catalog & CAD Library

1 - 25 of 60 | Results Per Page | View | Unit of Measure

1 2 3

CAD help Compare Items

Clear Filter

d x D (inch)

Torque - Mt (lb·ft)

Thrust - Th (lbs)

Shaft Pressure (ksi)

Part Number	d x D (inch)	Torque - Mt	Thrust - Th	Shaft Pressure	CAD

BCH202008-016	N/A 1/2 x 1.496	N/A 48 lb·ft	N/A 2320 lbs	N/A 24.7 ksi	N/A
BCH202010-016	N/A 5/8 x 1.496	N/A 60 lb·ft	N/A 2320 lbs	N/A 19.7 ksi	N/A
BCH202012-016	N/A 3/4 x 1.732	N/A 72 lb·ft	N/A 2320 lbs	N/A 16.5 ksi	N/A
BCH202014-020	N/A 7/8 x 1.969	N/A 84 lb·ft	N/A 2320 lbs	N/A 11.3 ksi	N/A
BCH202015-020	N/A 15/16 x 1.969	N/A 90 lb·ft	N/A 2320 lbs	N/A 10.6 ksi	N/A
BCH202100-020	N/A 1 x 1.969	N/A 97 lb·ft	N/A 2320 lbs	N/A 9.9 ksi	N/A
BCH202102-020	N/A 1 1/8 x 2.165	N/A 136 lb·ft	N/A 2990 lbs	N/A 11.3 ksi	N/A
BCH202103-020	N/A 1 3/16 x 2.165	N/A 136 lb·ft	N/A 2990 lbs	N/A 10.7 ksi	N/A
BCH202104-020	N/A 1 1/4 x 2.362	N/A 180 lb·ft	N/A 3570 lbs	N/A 12.2 ksi	N/A
BCH202106-020	N/A 1 3/8 x 2.362	N/A 180 lb·ft	N/A 3570 lbs	N/A 11.2 ksi	N/A
BCH202107-025	N/A 1 7/16 x 2.756	N/A 237 lb·ft	N/A 4020 lbs	N/A 10.0 ksi	N/A
BCH202108-025	N/A 1 1/2 x 2.756	N/A 237 lb·ft	N/A 4020 lbs	N/A 9.6 ksi	N/A
BCH202110-025	N/A 1 5/8 x 2.992	N/A 385 lb·ft	N/A 6050 lbs	N/A 13.2 ksi	N/A
BCH202111-025	N/A 1 11/16 x 2.992	N/A 385 lb·ft	N/A 6050 lbs	N/A 12.8 ksi	N/A
BCH202112-025	N/A 1 3/4 x 2.992	N/A 385 lb·ft	N/A 6050 lbs	N/A 12.3 ksi	N/A
BCH202114-030	N/A 1 7/8 x 3.543	N/A 683 lb·ft	N/A 9060 lbs	N/A 14.8 ksi	N/A
BCH202115-030	N/A 1 15/16 x 3.543	N/A 683 lb·ft	N/A 9060 lbs	N/A 14.4 ksi	N/A
BCH202200-030	N/A 2 x 3.543	N/A 683 lb·ft	N/A 9060 lbs	N/A 13.8 ksi	N/A
BCH202202-030	N/A 2 1/8 x 3.543	N/A 683 lb·ft	N/A 9060 lbs	N/A 13.1 ksi	N/A
BCH202203-030	N/A 2 3/16 x 3.543	N/A 683 lb·ft	N/A 9060 lbs	N/A 12.6 ksi	N/A
BCH202204-035	N/A 2 1/4 x 4.134	N/A 1066 lb·ft	N/A 12190 lbs	N/A 13.6 ksi	N/A
BCH202206-035	N/A 2 3/8 x 4.134	N/A 1066 lb·ft	N/A 12190 lbs	N/A 12.9 ksi	N/A
BCH202207-035	N/A 2 7/16 x 4.134	N/A 1066 lb·ft	N/A 12190 lbs	N/A 12.6 ksi	N/A
BCH202208-035	N/A 2 1/2 x 4.134	N/A 1066 lb·ft	N/A 12190 lbs	N/A 12.3 ksi	N/A
BCH202209-035	N/A 2 9/16 x 4.134	N/A 1066 lb·ft	N/A 12190 lbs	N/A 12.0 ksi	N/A
