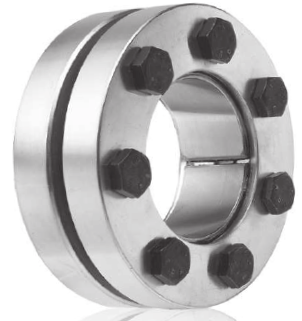

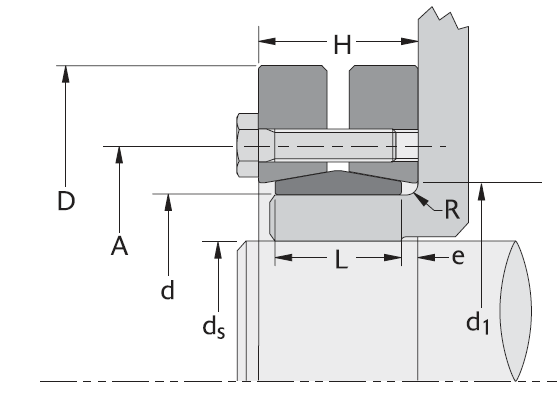

SD20 — Light Duty
B-LOC Shrink Discs
Part Number |
Shaft Size [Min] |
Shaft Size [Max] |
Torque [Min] |
Torque [Max] |
CAD |
|---|---|---|---|---|---|
| H1252 | Shaft Size [Min] N/A 3.625 in92 mm | Shaft Size [Max] N/A 4.125 in105 mm | Torque [Min] N/A 9380 lb·ft12719 N·m | Torque [Max] N/A 13343 lb·ft18093 N·m |
CAD
N/A
|
| H1402 | Shaft Size [Min] N/A 4.250 in108 mm | Shaft Size [Max] N/A 5.00 in127 mm | Torque [Min] N/A 13691 lb·ft18565 N·m | Torque [Max] N/A 20328 lb·ft27565 N·m |
CAD
N/A
|
| H1552 | Shaft Size [Min] N/A 5.000 in127 mm | Shaft Size [Max] N/A 5.500 in140 mm | Torque [Min] N/A 21144 lb·ft28671 N·m | Torque [Max] N/A 27447 lb·ft37218 N·m |
CAD
N/A
|
| H1652 | Shaft Size [Min] N/A 5.375 in137 mm | Shaft Size [Max] N/A 5.750 in146 mm | Torque [Min] N/A 30652 lb·ft41564 N·m | Torque [Max] N/A 36677 lb·ft49734 N·m |
CAD
N/A
|
| H1752 | Shaft Size [Min] N/A 5.625 in143 mm | Shaft Size [Max] N/A 6.125 in156 mm | Torque [Min] N/A 34940 lb·ft47379 N·m | Torque [Max] N/A 43588 lb·ft59105 N·m |
CAD
N/A
|
| H1852 | Shaft Size [Min] N/A 6.000 in152 mm | Shaft Size [Max] N/A 6.500 in165 mm | Torque [Min] N/A 41643 lb·ft56468 N·m | Torque [Max] N/A 51035 lb·ft69203 N·m |
CAD
N/A
|
| H1952 | Shaft Size [Min] N/A 6.500 in165 mm | Shaft Size [Max] N/A 7.000 in178 mm | Torque [Min] N/A 58979 lb·ft79976 N·m | Torque [Max] N/A 71073 lb·ft96375 N·m |
CAD
N/A
|
| H2202 | Shaft Size [Min] N/A 7.000 in | Shaft Size [Max] N/A 7.875 in | Torque [Min] N/A 76454 lb·ft | Torque [Max] N/A 100895 lb·ft |
CAD
N/A
|
| H2402 | Shaft Size [Min] N/A 7.875 in | Shaft Size [Max] N/A 8.500 in | Torque [Min] N/A 107011 lb·ft | Torque [Max] N/A 129864 lb·ft |
CAD
N/A
|
| H2602 | Shaft Size [Min] N/A 8.625 in | Shaft Size [Max] N/A 9.250 in | Torque [Min] N/A 139939 lb·ft | Torque [Max] N/A 166618 lb·ft |
CAD
N/A
|
| H2802 | Shaft Size [Min] N/A 9.000 in | Shaft Size [Max] N/A 9.875 in | Torque [Min] N/A 158724 lb·ft | Torque [Max] N/A 200396 lb·ft |
CAD
N/A
|
| H3002 | Shaft Size [Min] N/A 9.875 in | Shaft Size [Max] N/A 10.625 in | Torque [Min] N/A 229935 lb·ft | Torque [Max] N/A 271288 lb·ft |
CAD
N/A
|
| H3202 | Shaft Size [Min] N/A 10.500 in | Shaft Size [Max] N/A 11.375 in | Torque [Min] N/A 238939 lb·ft | Torque [Max] N/A 292045 lb·ft |
CAD
N/A
|
| H3402 | Shaft Size [Min] N/A 11.375 in | Shaft Size [Max] N/A 12.000 in | Torque [Min] N/A 281000 lb·ft | Torque [Max] N/A 320857 lb·ft |
CAD
N/A
|
| H3602 | Shaft Size [Min] N/A 11.875 in | Shaft Size [Max] N/A 12.625 in | Torque [Min] N/A 341876 lb·ft | Torque [Max] N/A 398029 lb·ft |
CAD
N/A
|
| H3802 | Shaft Size [Min] N/A 12.500 in | Shaft Size [Max] N/A 13.000 in | Torque [Min] N/A 403340 lb·ft | Torque [Max] N/A 444630 lb·ft |
CAD
N/A
|
| H3902 | Shaft Size [Min] N/A 12.625 in | Shaft Size [Max] N/A 13.75 in | Torque [Min] N/A 446171 lb·ft | Torque [Max] N/A 549086 lb·ft |
CAD
N/A
|
| H4202 | Shaft Size [Min] N/A 13.750 in | Shaft Size [Max] N/A 14.625 in | Torque [Min] N/A 544495 lb·ft | Torque [Max] N/A 625817 lb·ft |
CAD
N/A
|
| H4602 | Shaft Size [Min] N/A 14.625 in | Shaft Size [Max] N/A 16.375 in | Torque [Min] N/A 704454 lb·ft | Torque [Max] N/A 927856 lb·ft |
CAD
N/A
|
| H5002 | Shaft Size [Min] N/A 16.250 in | Shaft Size [Max] N/A 17.375 in | Torque [Min] N/A 860127 lb·ft | Torque [Max] N/A 1014952 lb·ft |
CAD
N/A
|
