Product Catalog & CAD Library

  • CT1100_CT2100_CT3100

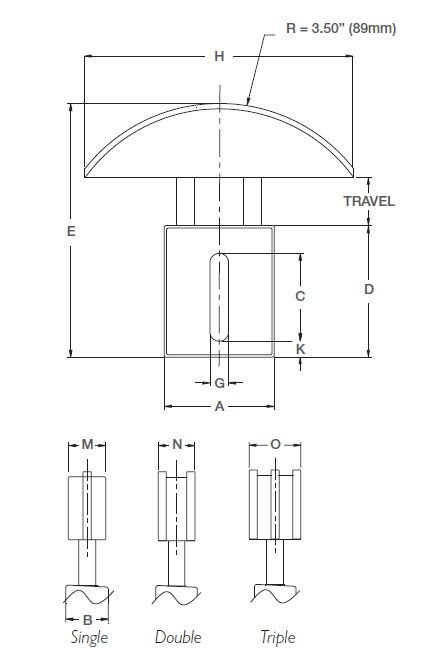

  • CT1100_CT2100_CT3100---Inch---dim
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
CAD help Compare Items

Part Number

Style

Weight

Size

Travel

Force

CAD

N/A Single Chain N/A 0.7794 lbs N/A #35 N/A 1.05 in N/A 5 to 30 lbs N/A CAD Icon (for items table)
N/A Single Chain N/A 0.7794 lbs N/A #35 N/A 1.05 in N/A 15 to 40 lbs N/A CAD Icon (for items table)
N/A Single Chain N/A 0.7656 lbs N/A #40 N/A 1.05 in N/A 15 to 40 lbs N/A CAD Icon (for items table)
N/A Double Chain N/A 0.7816 lbs N/A #35 N/A 1.05 in N/A 5 to 30 lbs N/A CAD Icon (for items table)
N/A Double Chain N/A 0.7816 lbs N/A #35 N/A 1.05 in N/A 15 to 40 lbs N/A CAD Icon (for items table)
N/A Double Chain N/A 0.7791 lbs N/A #40 N/A 1.05 in N/A 15 to 40 lbs N/A CAD Icon (for items table)
N/A Triple Chain N/A 0.7595 lbs N/A #35 N/A 1.05 in N/A 5 to 30 lbs N/A CAD Icon (for items table)
N/A Triple Chain N/A N/A #35 N/A 1.05 in N/A 15 to 40 lbs N/A CAD Icon (for items table)
N/A Triple Chain N/A N/A #40 N/A 1.05 in N/A 15 to 40 lbs N/A CAD Icon (for items table)
