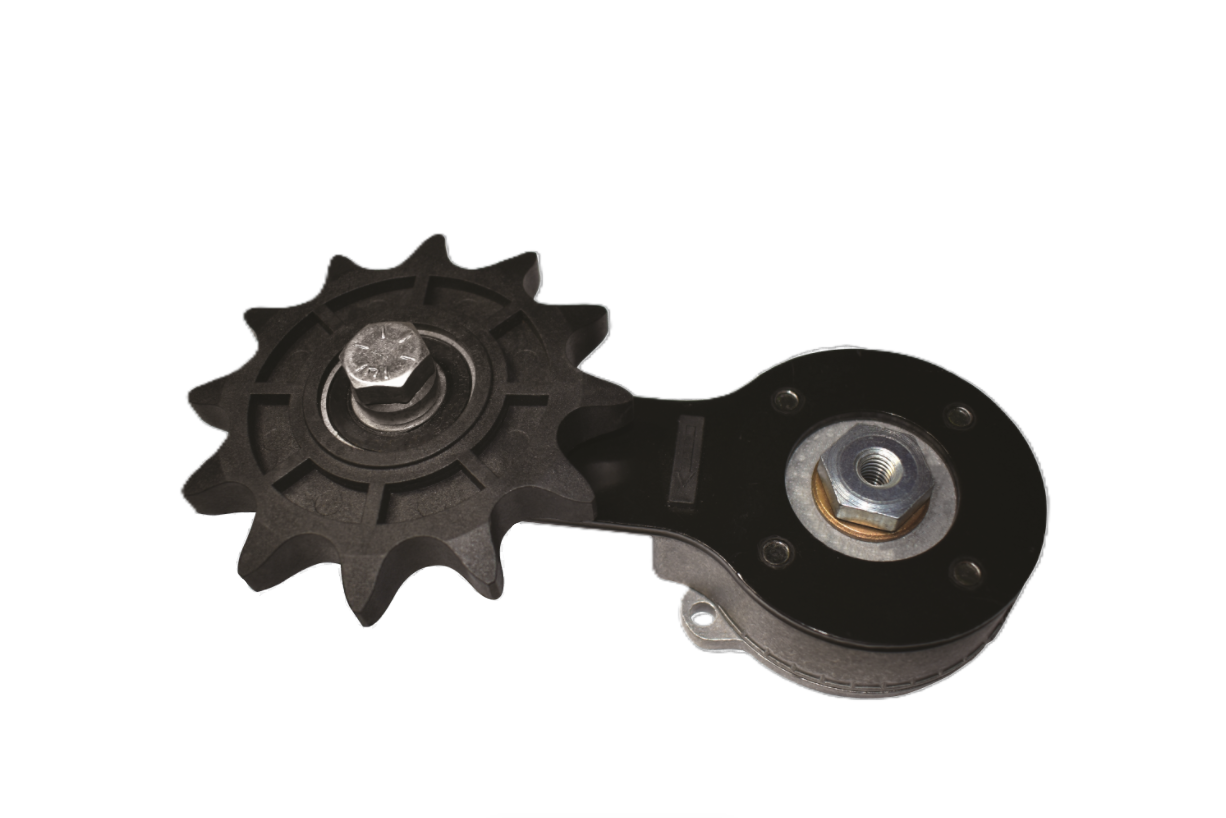

Fenner Drives Tensioner/Sprocket Assemblies On Fenner Precision Polymers

Product Catalog & CAD Library

1 - 14 of 14 | Results Per Page | View | Unit of Measure

1

CAD help Compare Items

Part Number	Chain Size	Component	Component Part Number	Rotation	Force

FS0142	N/A #35	N/A Sprocket Tensioner	N/A CS3502 RT1001	N/A 15 º30 º45 º	N/A 16 lbs23 lbs30 lbs
FS0658	N/A #35	N/A Sprocket Tensioner	N/A CS3502 RT1601-L	N/A 15 º30 º45 º	N/A 10 lbs13 lbs16 lbs
FS0651	N/A #40	N/A Sprocket Tensioner	N/A CS4002 RT1001	N/A 15 º30 º45 º	N/A 16 lbs23 lbs30 lbs
FS0652	N/A #40	N/A Sprocket Tensioner	N/A CS4002 RT1601	N/A 15 º25 º35 º	N/A 20 lbs23 lbs26 lbs
FS0644	N/A #40	N/A Sprocket Tensioner	N/A CS4002 RT1601-L	N/A 15 º30 º45 º	N/A 10 lbs13 lbs16 lbs
FS0557	N/A #40	N/A Sprocket Tensioner	N/A CS4002 RT3001	N/A 0 to 70 º	N/A 0 to 42 lbs
FS0653	N/A #50	N/A Sprocket Tensioner	N/A CS5002 RT1001	N/A 15 º30 º45 º	N/A 16 lbs23 lbs30 lbs
FS0654	N/A #50	N/A Sprocket Tensioner	N/A CS5002 RT1601	N/A 15 º25 º35 º	N/A 20 lbs23 lbs26 lbs
FS0659	N/A #50	N/A Sprocket Tensioner	N/A CS5002 RT1601-L	N/A 15 º30 º45 º	N/A 10 lbs13 lbs16 lbs
FS0567	N/A #50	N/A Sprocket Tensioner	N/A CS5002 RT3001	N/A 0 to 70 º	N/A 0 to 42 lbs
FS0655	N/A #60	N/A Sprocket Tensioner	N/A CS6002 RT1001	N/A 15 º30 º45 º	N/A 16 lbs23 lbs30 lbs
FS0656	N/A #60	N/A Sprocket Tensioner	N/A CS6002 RT1601	N/A 15 º25 º35 º	N/A 20 lbs23 lbs26 lbs
FS0568	N/A #60	N/A Sprocket Tensioner	N/A CS6002 RT3001	N/A 0 to 70 º	N/A 0 to 42 lbs
FS0657	N/A #80	N/A Sprocket Tensioner	N/A CS8002 RT1001	N/A 15 º30 º45 º	N/A 16 lbs23 lbs30 lbs
