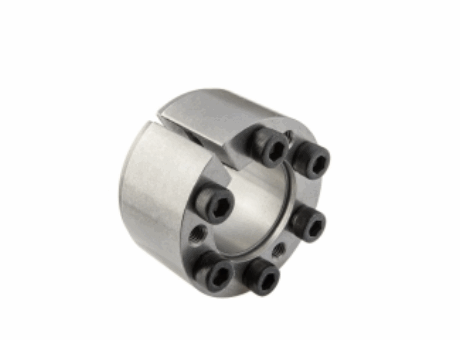

Locking assembly MAV 7903 On Fenner Precision Polymers

Product Catalog & CAD Library

Medium capacity - Self-centering, self-locking - Single taper design - Low contact pressures - Tolerances: shaft h8-h11; hub bore H8-H11 - Surface finish of shaft and hub bore 0.8 < Ra < 3.2 µm

1 - 25 of 28 | Results Per Page | View | Unit of Measure

1 2

CAD help Compare Items

Clear Filter

d (mm)

D (mm)

Torque - Mt (N·m)

Hub Pressure - Ph (MPa)

Item #	d	D	Torque - Mt	Hub Pressure - Ph	CAD

7903 5x16	N/A 5 mm	N/A 16 mm	N/A 5.5 N·m	N/A 62 MPa	N/A
7903 6x16	N/A 6 mm	N/A 16 mm	N/A 8 N·m	N/A 62 MPa	N/A
7903 7x17	N/A 7 mm	N/A 17 mm	N/A 10 N·m	N/A 58 MPa	N/A
7903 8x18	N/A 8 mm	N/A 18 mm	N/A 11 N·m	N/A 55 MPa	N/A
7903 9x20	N/A 9 mm	N/A 20 mm	N/A 17 N·m	N/A 58 MPa	N/A
7903 10x20	N/A 10 mm	N/A 20 mm	N/A 19 N·m	N/A 58 MPa	N/A
7903 11x22	N/A 11 mm	N/A 22 mm	N/A 21 N·m	N/A 53 MPa	N/A
7903 12x22	N/A 12 mm	N/A 22 mm	N/A 23 N·m	N/A 53 MPa	N/A
7903 14x26	N/A 14 mm	N/A 26 mm	N/A 42 N·m	N/A 51 MPa	N/A
7903 15x28	N/A 15 mm	N/A 28 mm	N/A 45 N·m	N/A 48 MPa	N/A
7903 16x32	N/A 16 mm	N/A 32 mm	N/A 83 N·m	N/A 72 MPa	N/A
7903 17x35	N/A 17 mm	N/A 35 mm	N/A 88 N·m	N/A 57 MPa	N/A
7903 18x35	N/A 18 mm	N/A 35 mm	N/A 94 N·m	N/A 57 MPa	N/A
7903 19x35	N/A 19 mm	N/A 35 mm	N/A 99 N·m	N/A 57 MPa	N/A
7903 20x38	N/A 20 mm	N/A 38 mm	N/A 170 N·m	N/A 85 MPa	N/A
7903 22x40	N/A 22 mm	N/A 40 mm	N/A 180 N·m	N/A 81 MPa	N/A
7903 24x47	N/A 24 mm	N/A 47 mm	N/A 290 N·m	N/A 76 MPa	N/A
7903 25x47	N/A 25 mm	N/A 47 mm	N/A 300 N·m	N/A 76 MPa	N/A
7903 28x50	N/A 28 mm	N/A 50 mm	N/A 500 N·m	N/A 107 MPa	N/A
7903 30x55	N/A 30 mm	N/A 55 mm	N/A 540 N·m	N/A 97 MPa	N/A
7903 32x55	N/A 32 mm	N/A 55 mm	N/A 580 N·m	N/A 97 MPa	N/A
7903 35x60	N/A 35 mm	N/A 60 mm	N/A 840 N·m	N/A 97 MPa	N/A
7903 38x65	N/A 38 mm	N/A 65 mm	N/A 920 N·m	N/A 90 MPa	N/A
7903 40x65	N/A 40 mm	N/A 65 mm	N/A 970 N·m	N/A 90 MPa	N/A
7903 42x75	N/A 42 mm	N/A 75 mm	N/A 1400 N·m	N/A 91 MPa	N/A
