Trantorque GT – Metric On Fenner Precision Polymers

Product Catalog & CAD Library

1 - 25 of 104 | Results Per Page | View | Unit of Measure

1 2 3 4 5

CAD help Compare Items

Clear Filter

d x D (mm)

Torque - Mt (N·m)

Thrust - Th (kN)

Hub Pressure - Ph (N/mm²)

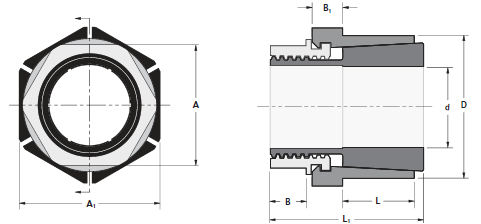

Part Number	d x D (mm)	Torque - Mt	Thrust - Th	Hub Pressure - Ph	CAD

6202800UP	N/A 15 x 38	N/A 210 N·m	N/A 28 kN	N/A 99 N/mm²	N/A
6202803UP	N/A 16 x 38	N/A 224 N·m	N/A 28 kN	N/A 99 N/mm²	N/A
6202804UP	N/A 17 x 38	N/A 238 N·m	N/A 28 kN	N/A 99 N/mm²	N/A
6202805UP	N/A 18 x 38	N/A 252 N·m	N/A 28 kN	N/A 99 N/mm²	N/A
6202808UP	N/A 19 x 38	N/A 266 N·m	N/A 28 kN	N/A 99 N/mm²	N/A
6202811UP	N/A 20 x 45	N/A 292 N·m	N/A 29 kN	N/A 68 N/mm²	N/A
6202815UP	N/A 22 x 45	N/A 322 N·m	N/A 29 kN	N/A 68 N/mm²	N/A
6202820UP	N/A 24 x 45	N/A 351 N·m	N/A 29 kN	N/A 68 N/mm²	N/A
6202825UP	N/A 25 x 45	N/A 366 N·m	N/A 29 kN	N/A 68 N/mm²	N/A
6202830UP	N/A 28 x 51	N/A 466 N·m	N/A 33 kN	N/A 61 N/mm²	N/A
6202835UP	N/A 30 x 51	N/A 499 N·m	N/A 33 kN	N/A 61 N/mm²	N/A
6202840UP	N/A 32 x 51	N/A 532 N·m	N/A 33 kN	N/A 61 N/mm²	N/A
6202845UP	N/A 34 x 60.5	N/A 569 N·m	N/A 33 kN	N/A 36 N/mm²	N/A
6202850UP	N/A 35 x 60.5	N/A 585 N·m	N/A 33 kN	N/A 36 N/mm²	N/A
6202855UP	N/A 36 x 60.5	N/A 602 N·m	N/A 33 kN	N/A 36 N/mm²	N/A
6202860UP	N/A 38 x 60.5	N/A 636 N·m	N/A 33 kN	N/A 36 N/mm²	N/A
6202865UP	N/A 40 x 67	N/A 728 N·m	N/A 36 kN	N/A 31 N/mm²	N/A
6202870UP	N/A 42 x 67	N/A 765 N·m	N/A 36 kN	N/A 31 N/mm²	N/A
6202876UP	N/A 45 x 73	N/A 1296 N·m	N/A 58 kN	N/A 39 N/mm²	N/A
6202880UP	N/A 48 x 73	N/A 1383 N·m	N/A 58 kN	N/A 39 N/mm²	N/A
6202885UP	N/A 50 x 73	N/A 1440 N·m	N/A 58 kN	N/A 39 N/mm²	N/A
6202900UP	N/A 55 x 80	N/A 1549 N·m	N/A 56 kN	N/A 33 N/mm²	N/A
6202910UP	N/A 60 x 86	N/A 1641 N·m	N/A 55 kN	N/A 28 N/mm²	N/A
6202920UP	N/A 65 x 92	N/A 1759 N·m	N/A 54 kN	N/A 25 N/mm²	N/A
6202930UP	N/A 70 x 92	N/A 1894 N·m	N/A 54 kN	N/A 25 N/mm²	N/A
