  • Trantorque NT

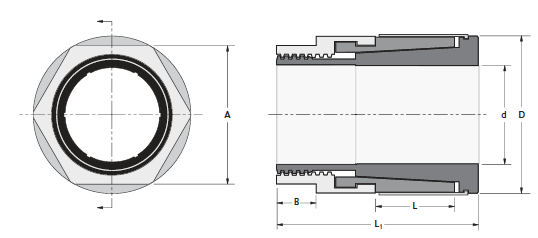

  • Trantorque NT - dim
1 - 25 of 32 | Results Per Page | View | Unit of Measure
1 2
CAD help Compare Items
Clear Filter

d x D (inch)

Torque - Mt (lb·ft)

Thrust - Th (lbs)

Hub Pressure - Ph (psi)

Part Number

d x D (inch)

Torque - Mt

Thrust - Th

Hub Pressure - Ph

CAD

N/A 3/16 x 5/8 N/A 7 lb·ft N/A 876 lbs N/A 9918 psi N/A CAD Icon (for items table)
N/A 1/4 x 5/8 N/A 9 lb·ft N/A 876 lbs N/A 9918 psi N/A CAD Icon (for items table)
N/A 5/16 x 3/4 N/A 11 lb·ft N/A 845 lbs N/A 6833 psi N/A CAD Icon (for items table)
N/A 3/8 x 3/4 N/A 13 lb·ft N/A 845 lbs N/A 6833 psi N/A CAD Icon (for items table)
N/A 7/16 x 7/8 N/A 15 lb·ft N/A 824 lbs N/A 4995 psi N/A CAD Icon (for items table)
N/A 1/2 x 7/8 N/A 17 lb·ft N/A 824 lbs N/A 4995 psi N/A CAD Icon (for items table)
N/A 9/16 x 1 N/A 19 lb·ft N/A 811 lbs N/A 3440 psi N/A CAD Icon (for items table)
N/A 5/8 x 1 N/A 21 lb·ft N/A 811 lbs N/A 3440 psi N/A CAD Icon (for items table)
N/A 3/4 x 1 1/4 N/A 73 lb·ft N/A 2326 lbs N/A 6581 psi N/A CAD Icon (for items table)
N/A 5/8 x 1 1/2 N/A 91 lb·ft N/A 3484 lbs N/A 8960 psi N/A CAD Icon (for items table)
N/A 11/16 x 1 1/2 N/A 100 lb·ft N/A 3484 lbs N/A 8960 psi N/A CAD Icon (for items table)
N/A 3/4 x 1 1/2 N/A 109 lb·ft N/A 3484 lbs N/A 8960 psi N/A CAD Icon (for items table)
N/A 13/16 x 1 3/4 N/A 122 lb·ft N/A 3594 lbs N/A 6704 psi N/A CAD Icon (for items table)
N/A 7/8 x 1 3/4 N/A 131 lb·ft N/A 3594 lbs N/A 6704 psi N/A CAD Icon (for items table)
N/A 15/16 x 1 3/4 N/A 140 lb·ft N/A 3594 lbs N/A 6704 psi N/A CAD Icon (for items table)
N/A 1 x 1 3/4 N/A 150 lb·ft N/A 3594 lbs N/A 6704 psi N/A CAD Icon (for items table)
N/A 1 1/16 x 2 N/A 183 lb·ft N/A 4137 lbs N/A 5853 psi N/A CAD Icon (for items table)
N/A 1 1/8 x 2 N/A 194 lb·ft N/A 4137 lbs N/A 5853 psi N/A CAD Icon (for items table)
N/A 1 3/16 x 2 N/A 205 lb·ft N/A 4137 lbs N/A 5853 psi N/A CAD Icon (for items table)
N/A 1 1/4 x 2 N/A 215 lb·ft N/A 4137 lbs N/A 5853 psi N/A CAD Icon (for items table)
N/A 1 5/16 x 2 3/8 N/A 225 lb·ft N/A 4113 lbs N/A 3196 psi N/A CAD Icon (for items table)
N/A 1 3/8 x 2 3/8 N/A 236 lb·ft N/A 4113 lbs N/A 3196 psi N/A CAD Icon (for items table)
N/A 1 7/16 x 2 3/8 N/A 246 lb·ft N/A 4113 lbs N/A 3196 psi N/A CAD Icon (for items table)
N/A 1 1/2 x 2 3/8 N/A 257 lb·ft N/A 4113 lbs N/A 3196 psi N/A CAD Icon (for items table)
N/A 1 9/16 x 2 5/8 N/A 291 lb·ft N/A 4466 lbs N/A 2777 psi N/A CAD Icon (for items table)
