  • Trantorque OE

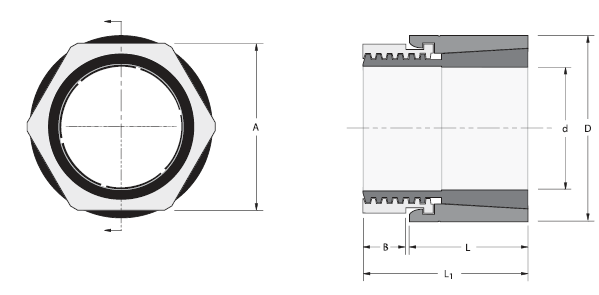

  • Trantorque OE - dim
1 - 25 of 44 | Results Per Page | View | Unit of Measure
1 2
CAD help Compare Items
Clear Filter

d x D (mm)

Torque - Mt (N·m)

Thrust - Th (kN)

Hub Pressure - Ph (N/mm²)

Part Number

d x D (mm)

Torque - Mt

Thrust - Th

Hub Pressure - Ph

CAD

N/A 17 x 32 N/A 218 N·m N/A 26 kN N/A 142 N/mm² N/A CAD Icon (for items table)
N/A 18 x 32 N/A 231 N·m N/A 26 kN N/A 142 N/mm² N/A CAD Icon (for items table)
N/A 19 x 32 N/A 244 N·m N/A 26 kN N/A 142 N/mm² N/A CAD Icon (for items table)
N/A 20 x 35 N/A 315 N·m N/A 32 kN N/A 144 N/mm² N/A CAD Icon (for items table)
N/A 22 x 35 N/A 347 N·m N/A 32 kN N/A 144 N/mm² N/A CAD Icon (for items table)
N/A 24 x 38 N/A 425 N·m N/A 35 kN N/A 136 N/mm² N/A CAD Icon (for items table)
N/A 25 x 38 N/A 443 N·m N/A 35 kN N/A 136 N/mm² N/A CAD Icon (for items table)
N/A 28 x 45 N/A 539 N·m N/A 38 kN N/A 106 N/mm² N/A CAD Icon (for items table)
N/A 30 x 45 N/A 577 N·m N/A 38 kN N/A 106 N/mm² N/A CAD Icon (for items table)
N/A 32 x 50 N/A 618 N·m N/A 39 kN N/A 84 N/mm² N/A CAD Icon (for items table)
N/A 35 x 50 N/A 676 N·m N/A 39 kN N/A 84 N/mm² N/A CAD Icon (for items table)
N/A 17 x 32 N/A 130.8 N·m N/A 15.6 kN N/A 85.2 N/mm² N/A CAD Icon (for items table)
N/A 18 x 32 N/A 138.6 N·m N/A 15.6 kN N/A 85.2 N/mm² N/A CAD Icon (for items table)
N/A 19 x 32 N/A 146.4 N·m N/A 15.6 kN N/A 85.2 N/mm² N/A CAD Icon (for items table)
N/A 20 x 35 N/A 189 N·m N/A 19.2 kN N/A 86.4 N/mm² N/A CAD Icon (for items table)
N/A 22 x 35 N/A 208.2 N·m N/A 19.2 kN N/A 86.4 N/mm² N/A CAD Icon (for items table)
N/A 24 x 38 N/A 255 N·m N/A 21 kN N/A 81.6 N/mm² N/A CAD Icon (for items table)
N/A 25 x 38 N/A 265.8 N·m N/A 21 kN N/A 81.6 N/mm² N/A CAD Icon (for items table)
N/A 28 x 45 N/A 323.4 N·m N/A 22.8 kN N/A 63.6 N/mm² N/A CAD Icon (for items table)
N/A 30 x 45 N/A 346.2 N·m N/A 22.8 kN N/A 63.6 N/mm² N/A CAD Icon (for items table)
N/A 32 x 50 N/A 370.8 N·m N/A 23.4 kN N/A 50.4 N/mm² N/A CAD Icon (for items table)
N/A 35 x 50 N/A 405.6 N·m N/A 23.4 kN N/A 50.4 N/mm² N/A CAD Icon (for items table)
N/A 17 x 32 N/A 196.2 N·m N/A 23.4 kN N/A 127.8 N/mm² N/A CAD Icon (for items table)
N/A 18 x 32 N/A 207.9 N·m N/A 23.4 kN N/A 127.8 N/mm² N/A CAD Icon (for items table)
N/A 19 x 32 N/A 219.6 N·m N/A 23.4 kN N/A 127.8 N/mm² N/A CAD Icon (for items table)
